Description

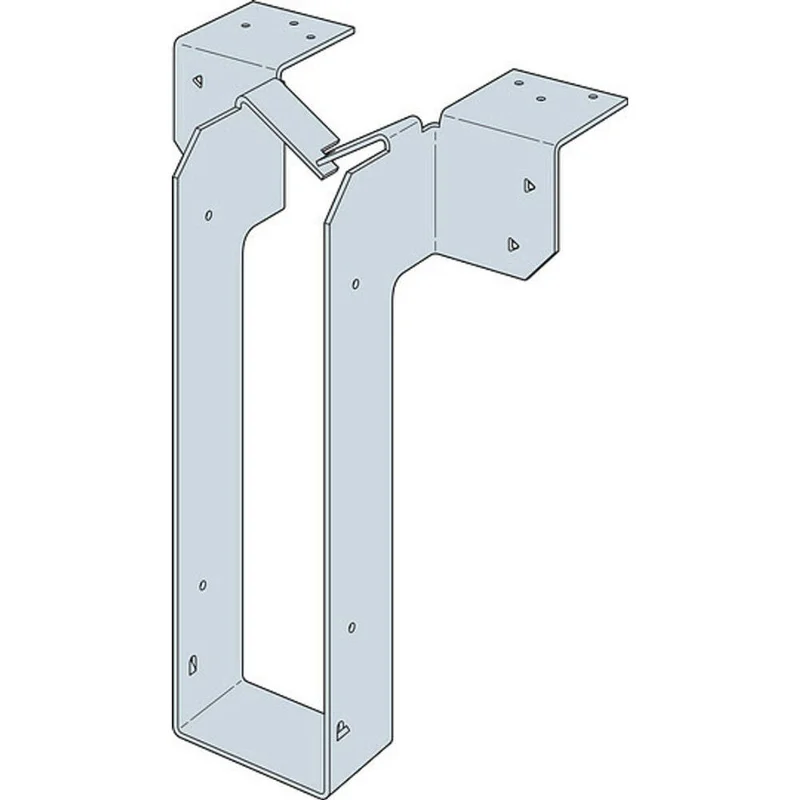

Simpson Strong-Tie 12 Gauge 3-1/2 x 18 In.
Joist G90 Coating DGF Fire Wall Hanger
The DGF fire wall hanger is ideal for multi-family, multilevel building construction and easily installs on a two-hour wood stud fire wall (e.g., Type III construction) during framing.
The new series features three models of top-flange hangers that connect floor trusses and joists to wood stud walls.
The hangers feature enough space for two layers of 5/8 In.
Gypsum board (drywall) to be slipped into place after the framing is complete.
They have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall.
These ratings verify that the DGF/DGHF/DGBF hangers do not reduce the two-hour fire wall assembly rating.
California Proposition 65 Warning.
Features
- Fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01
- No need for additional restraint against rotation of the wall top plates
- All models can be used on both sides of a 2×6 wall
- DGF welded to steel header with four 2 In. fillet welds and (6) joist nails achieves a download of 1650 Lbs
Specifications
Brand Name- Simpson Strong-Tie
Assembled Weight (lbs)- 1.5
Country of Origin- China
MFG Part (OEM)- DGF3.62/18
Package Contents- Fire Wall Hanger
Package Depth- 12
Package Height- 8.5625
Package Weight- 3
Product Condition- New
UPC- 707392005766
Warranty Type- No Manufacturer’s Warranty
