Description
Advantages of 3M™ Scotchlok™ Multi-Stack Disconnect
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide male and female tab
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 1000/case

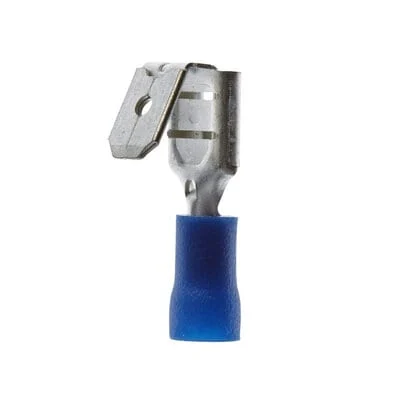

3M™ Scotchlok™ Multi-Stack Disconnect has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.
3M™ Scotchlok™ Multi-Stack Disconnect provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. The terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
