Description

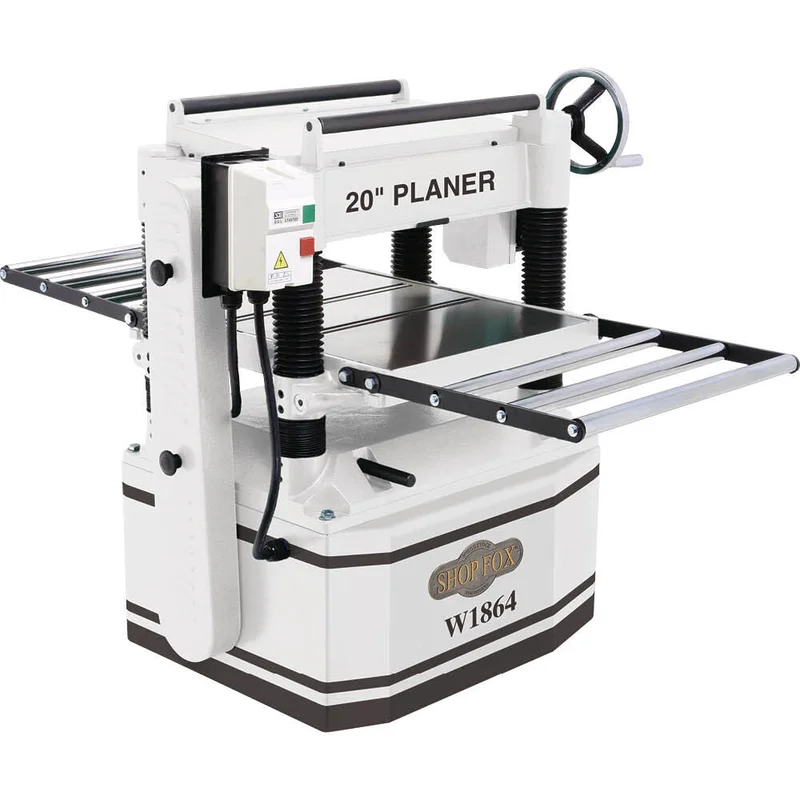

Shop Fox 4 Knife Planer 240V 5HP 1 Phase 20in
This 20 In. 4-knife planer with precision-ground cast-iron extension wings has the quality, capacity, and features to be a proud addition in any shop.
Its 5HP motor will handle material up to 20 In.
Wide by 8-5/8 In.
Thick, and its two feed speeds will give you the option of running at 956 cuts per Ft., or a finer 1222 cuts per Ft..
Check out all of the other great features and you’ll agree, this is one fine machine! Precision-ground cast-iron table and extension wings.
Top-mounted return rollers.
Magnetic switch overload protection. 5 In.
Dust port.
Triple V-belt driven cutterhead. 2-speed chain-driven automatic feed rollers.
Hardened anti-kickback fingers.
CSA certified.
California Proposition 65 Warning.
Features
- Precision-ground cast-iron table and extension wings
- Top-mounted return rollers
- Magnetic switch overload protection
- 5 In. dust port
- Triple V-belt driven cutterhead
- 2-Speed chain-driven automatic feed rollers
- Hardened anti-kickback fingers
- CSA Certified
Specifications
Brand Name- Shop Fox
Amperage (A)- 23
Assembled Weight (lbs)- 816
Bench or Stationary- Stationary
Blade Count- 4
Blade Length (in)- 20
California Proposition 65 Warning Required- Yes
Color- White
Country of Origin- Taiwan
CSA Certified- Yes
Drive Motor System- Electric
Horsepower (hp)- 5
MFG Part (OEM)- W1864
Maximum Cutting Depth (in)- 1/16
Maximum RPM- 3450
Maximum Width Cutting Capacity (in)- 20
Package Contents- 20 In. 4-Knife Planer, Knife Setting Jig
Package Depth- 58
Package Height- 46
Package Weight- 817
Package Weight (lbs)- 817
Product Condition- New
Switch Type- Magnetic Switch with Thermal Overload Protection
UPC- 754001003996
Warranty Type- 2 Years
