Product Description
EXCLUSIVE OFFER – Purchase this Jointer and get a FREE in-depth Jointer course covering over 2 hours of performance optimization, accessories, troubleshooting, and more. You will be emailed a link to the course after purchase. Click here for more info

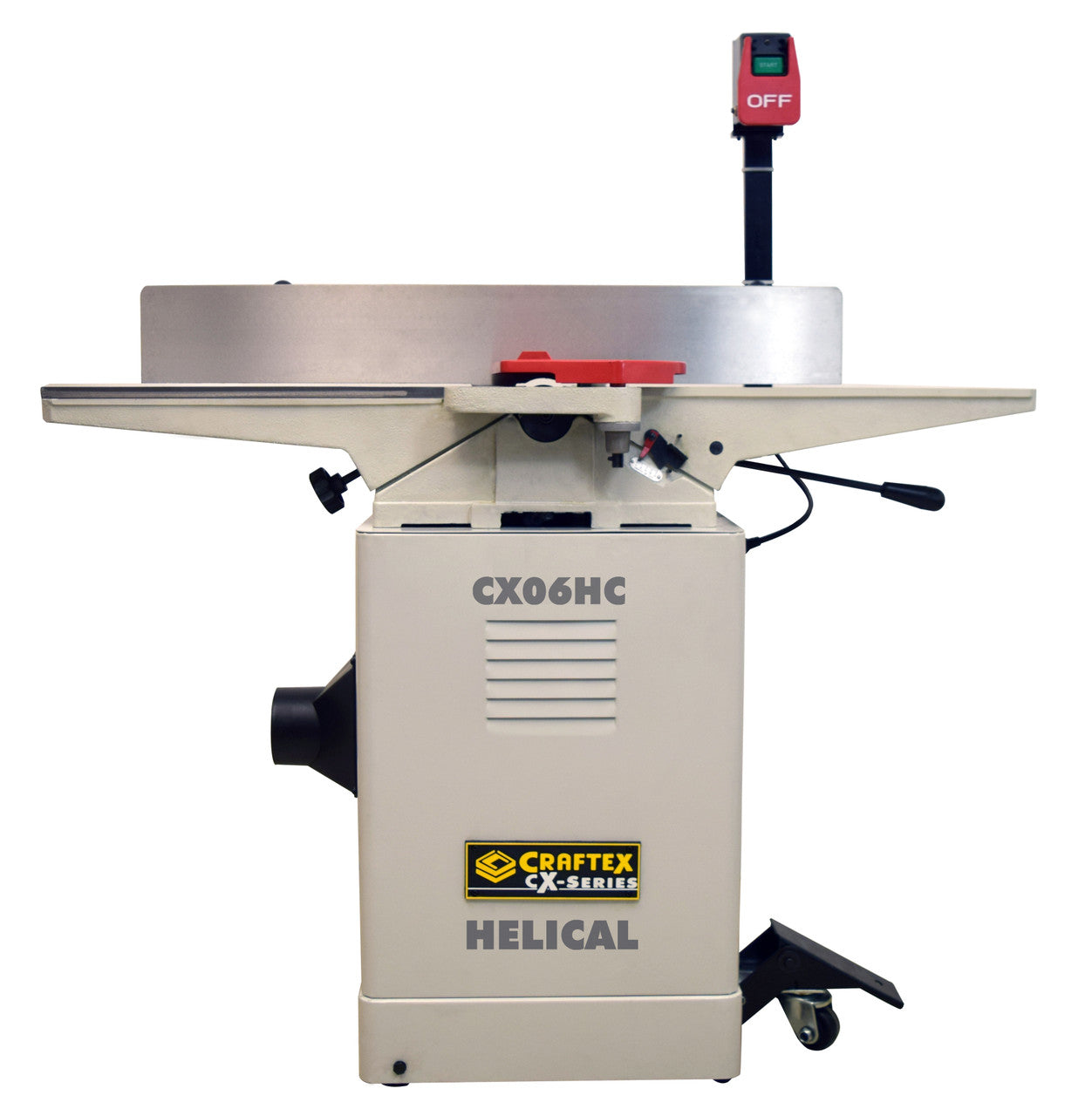

The CX06HC is a heavy-duty 6″ jointer designed for flattening board faces, straightening edges, and preparing stock for further machining. Its precision-ground cast iron infeed and outfeed tables are independently adjustable, while the dovetailed ways provide controlled table movement and accurate setup.
The helical cutterhead is equipped with 30 four-sided carbide inserts. The inserts create a shearing cutting action that helps produce a clean, smooth finish compared with a conventional straight-knife cutterhead. When an insert becomes chipped or dull, it can be loosened and rotated 90° to expose a fresh cutting edge without resetting an entire set of knives.
A 1.5HP TEFC capacitor-start induction motor provides dependable power and smooth starting. Power is transferred through a V-belt drive, while sealed and permanently lubricated bearings help reduce routine maintenance.
The centre-mounted cast iron fence includes positive stops at 45° and 90° for square and bevel jointing. A built-in 1/2″ rabbeting capacity adds versatility for additional stock preparation tasks.
Features
-
6″ jointing capacity
-
Helical cutterhead with 30 carbide inserts
-
Four-sided inserts can be rotated to expose fresh cutting edges
-
1.5HP TEFC capacitor-start induction motor
-
Operates on 110V single-phase power
-
Precision-ground cast iron infeed and outfeed tables
-
Independently adjustable tables
-
Adjustable dovetailed ways
-
Centre-mounted cast iron fence
-
Fence stops at 45° and 90°
-
Built-in 1/2″ rabbeting capacity
-
Cast iron body assembly
-
One-piece steel cabinet base
-
Preformed steel stand
-
Die-cast metal cutterhead guard
-
Sealed and permanently lubricated bearings
-
V-belt drive
Specifications
-
Model: CX06HC
-
Maximum Cutting Width: 6″
-
Table Size: 6″ W x 46″ L
-
Table Height: 32-1/2″
-
Overall Length: 46″
-
Overall Width: 27-1/2″
-
Footprint: 18″ x 13-1/2″
-
Cutterhead Type: Helical
-
Number of Inserts: 30
-
Insert Material: Carbide
-
Insert Dimensions: 14 x 14 x 2.5 mm
-
Cutterhead Diameter: 2-1/2″
-
Cutterhead Speed: 4,800 RPM
-
Cuts Per Minute: 14,400
-
Table Construction: Precision-ground cast iron
-
Table Adjustment: Independent infeed and outfeed adjustment
-
Table Movement: Handwheel and lever
-
Ways: Adjustable dovetail
-
Rabbeting Capacity: 1/2″
-
Fence Construction: Cast iron
-
Fence Position: Centre mounted
-
Fence Stops: 45° and 90°
-
Body Construction: Cast iron
-
Stand Construction: Preformed steel
-
Base Construction: One-piece steel cabinet
-
Cutterhead Guard: Die-cast metal
-
Motor Type: TEFC capacitor-start induction
-
Motor Power: 1.5HP
-
Voltage: 110V
-
Phase: Single phase
-
Amperage: 14A
-
Frequency: 60Hz
-
Motor Speed: 3,450 RPM
-
Power Transfer: V-belt drive
-
Bearings: Sealed and lubricated ball bearings
-
Net Weight: 128 kg
-
Box 1 Dimensions: 48-1/2″ x 21″ x 15″
-
Box 2 Dimensions: 20-1/2″ x 15-3/4″ x 28-3/4″
FAQ
What type of cutterhead does the CX06HC use?
The jointer uses a helical cutterhead equipped with 30 four-sided carbide inserts.
What happens when a carbide insert becomes dull or chipped?
The insert can be loosened and rotated 90° to expose a fresh cutting edge.
What is the maximum jointing width?
The CX06HC has a maximum cutting width of 6″.
Are the infeed and outfeed tables adjustable independently?
Yes. Both precision-ground cast iron tables can be adjusted independently.
What is the table length?
The total table length is 46″.
Can the fence be tilted?
Yes. The centre-mounted cast iron fence includes positive stops at 45° and 90°.
Can this jointer cut rabbets?
Yes. It has a built-in rabbeting capacity of 1/2″.
What power supply is required?
The CX06HC requires a 110V, single-phase power supply and draws 14A.
What type of motor does it use?
It uses a 1.5HP TEFC capacitor-start induction motor.
What is the net weight?
The jointer has a net weight of 128 kg.
