Description

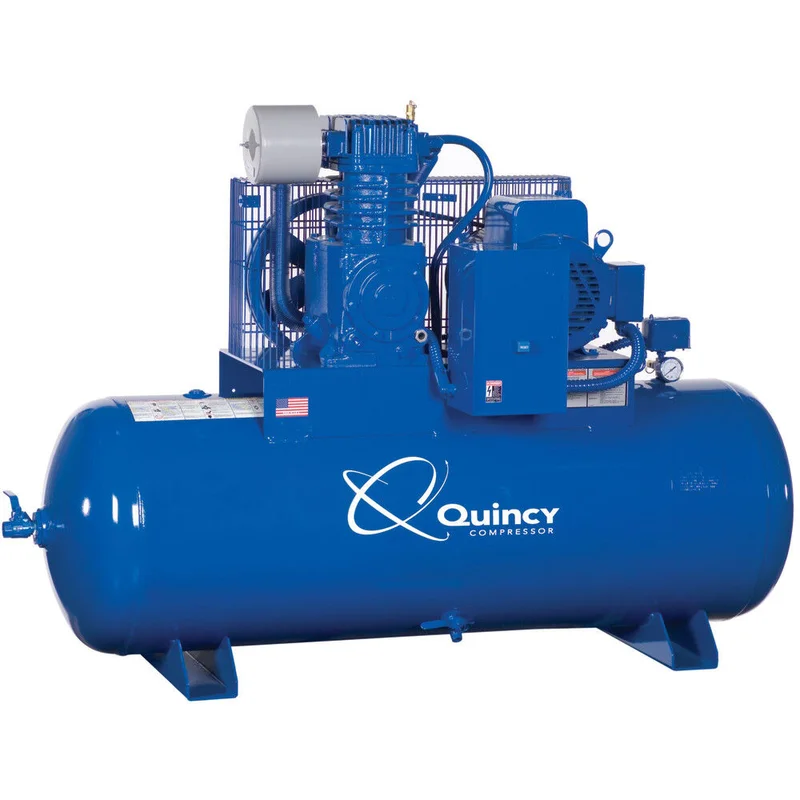

Quincy Air Compressor 7.5Hp 230V 1 Phase 80 Gallon Horizontal
Quincy reciprocating air compressors are designed to be a compressor for life.
They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower.
Quincy Compressors run at a slower RPM, run cooler and cost less to operate.
Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating.
California Proposition 65 Warning.
Features
- 7.5 hp, 230 V, Single Phase, 80 gal. Horizontal MAX, Splash Lubricated Air Compressor
- MAX Unit: Air Cooled After Cooler, Electronic Tank Drain, Low Oil Protection, Vibration Isolators, Auto Start/Stop
- Maximum working pressure: 175 PSI
- Pump RPM: 1,026
- Motor RPM: 1,060
- Air Inlet: 3/4″ Ball Valve
- Inlet Size: 1″ NPT
- Pump Life: 50,000 hours
- Lubrication: Quin-Cip
Specifications
Brand Name- Quincy
Air Compressor Pump Design- Oil Lubricated
Assembled Depth (in)- 70
Assembled Weight (lbs)- 690
Assembled Width (in)- 23
Color- Blue
Compressor Design- Horizontal (Stationary)
Country of Origin- United States
CSA Certified- Yes
Digital / Analog- Analog
ETL Listed- No
Handle Included- No
Height (in)- 74
Horsepower (hp)- 7.5
MFG Part (OEM)- 271C80HCB23M
Package Contents- Quincy QT-7.5 Splash Lubricated Reciprocating Air Compressor Р7.5 Hp, 230 V, 1 Ph, 80 gal. Horizontal MAX, Model 271C80HCB23M
Package Depth- 70
Package Height- 74
Package Weight- 740
Package Weight (lbs)- 730
Product Condition- New
Tank Capacity (gal)- 80
Tank Configuration- Single
Tank Pressure Gauge- Yes
UL Listed- Yes
UPC- 791326011039
Voltage- 230
Warranty Type- 1 Year
Wheeled- No
