Description

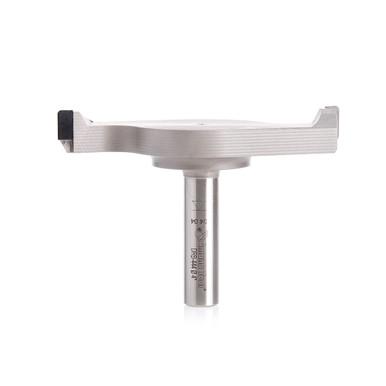

CNC PCD Spoilboard Router Bits,
Excellent for Cutting:
- Aluminum, Bronze & Copper
- Aluminum Composites
- Composite Materials
- MDF
- Particle Board
- Plywood Veneer
- Wood
Diamond Technology
Diamond is the hardest material on the earth. Polycrystaline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.
PCD Tooling Benefits:
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool, saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
If you’re looking for the ultimate in tooling, you’ve found it! Amana Tool®’s PCD tipped Spoilboard CNC router bits will plane a wide variety of tough, abrasive materials including particleboard, MDF (both raw or with melamine), Plywood Veneer and wood. The cutting edge lasts much longer than carbide for extremely long life. Depending on the material being cut, PCD tooling has been known to out perform a carbide tool by a ratio of 300:1. However, to be conservative in your buying decision, we suggest you base your expectations on 25:1 ratio over carbide tooling. Also known as a Surface Planing, Rabbeting, Flycutter, Fly Cutter, Leveler and Bed Skimming Router Bit.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Use “Ramp Down” technique.
