Description

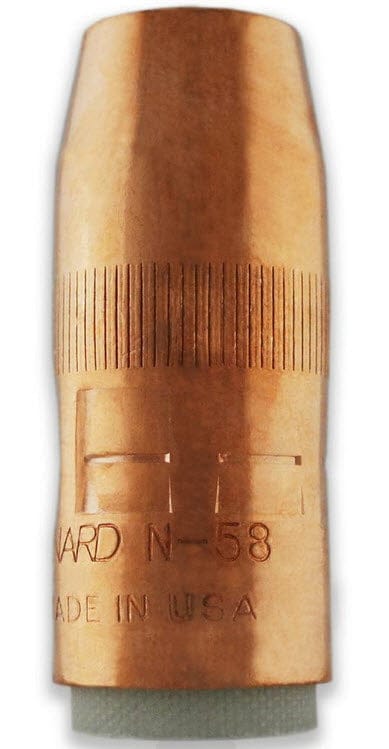

Bernard™ Centerfire™ MIG Nozzle, Copper “N” Series
Package of 1 – Genuine Bernard™ Centerfire™ MIG nozzle has a 5/8 inch bore with options for a flush tip, 1/8″ recess, or 1/4″ recess. Nozzle features copper construction and is threaded for precise contact tip alignment. Suitable for Bernard™ Q series MIG guns using D-1 gas diffuser.
Features
- 5/8 inch bore with choice of flush tip, 1/8″ recess, or 1/4″ recess alignment.
- No tools required to replace tip or nozzle.
- “Drop-In” tip with no threads means quick change after burnback, reducing down time.
- Large diameter tip base and tapered seat provides better electrical conductivity and heat transfer.
- Spatter shield within nozzle protects diffuser and gives smoother, less turbulent gas flow.
- Solid, concentric relationship between tip and nozzle keeps tip centered even after hard use… and abuse.
- Compatible with all standard air-cooled Bernard Q MIG guns using D-1 gas diffuser.
- Complete family of tips and nozzles is available to meet most of your welding needs.
- All components manufactured with pride in the USA.
