Description

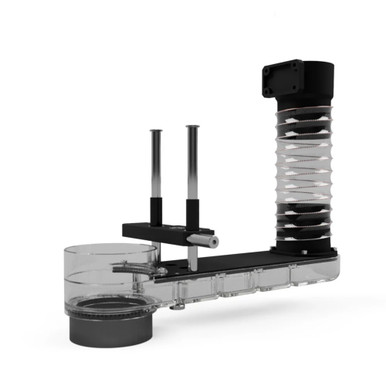

Sweepy Pro is perfect for wood, plastic, or composite materials. We recommend using a high-flow dust collection and separator unit for maximum effect. Like most dust boots, you won’t see a huge benefit if you’re cutting metal, but it’ll handle almost everything else with ease.
We did everything we could to make this the most functional fixed-height dust boot available:
- The vacuum hose mounts to a fixed location behind the gantry.
- All-new bases molded from clear polycarbonate.
- Height is adjustable using a thumbscrew on the bottom of the X/Z assembly.
- Two clear polycarbonate bases are included, one with a brush for maximum dust removal, and one without a brush for maximum visibility.
- If you don’t need Sweepy for a project, you can remove the base and then slide the unit up to keep it out of the way.
- Comes with adapters to work with 2″, 2.5″, and 35mm hose.
Note: Sweepy boots should always be removed when performing a tool change.
Included hardware
- 2.5″ hose adapter
- 35mm hose adapter
- Rear hose support
- Sweepy HD top assembly and slider components
- Sweepy HD Brush boot
- Sweepy HD brush-free boot for better visibility
- 2 x Sweepy thumb screws
- All relevant hardware to mount to a Shapeoko HDM.
Compatibility
- Shapeoko HDM (Be sure to pick the Shapeoko HDM option)
- Shapeoko 5 Pro with Carbide Compact Router (Be sure to pick the Shapeoko 5 Pro option)
- Shapeoko 5 Pro with 65mm VFD Spindle (Be sure to pick the Shapeoko 5 Pro option)
- Shapeoko 5 Pro with 80mm VFD Spindle (Be sure to pick the Shapeoko 5 Pro option)
Will it work on Shapeoko 3/4/Pro?
Unfortunately, the Sweepy Pro only works with Shapeoko HDM and the Shapeoko 5 Pro. We had to design the Z assembly specifically to accommodate this dust boot. There isn’t room for the hardware in the other machines.
