Description
Bore: 4.055 in / 103.00 mm
Stroke: 5.00 in / 127.00 mm
Engine Serial Numbers: 5MF10870-UP

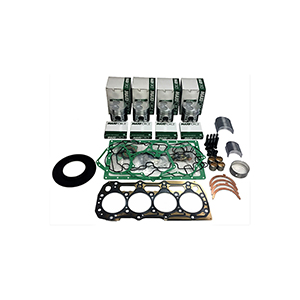

Parts Include in Overhaul Kit
(4) Piston, 185-0104
(1) Piston Ring Set, 185-0109
(1) Main Bearing Set, 067-6869
(1) Rod Bearing Set, 225-7781
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 4W-5360 (To Engine Serial Number: 5MF1183)
(1) Rear Crankshaft Seal, 209-9218 (To Engine Serial Number: 5MF1184)
(1) Head Gasket Set, 187-1290
(1) Lower Gasket Set, 187-4968
(4) Piston Pin Bushing, 138-2048
(1) Camshaft Bearing, 036-5802
(8) Rod Bolt, 067-6883
(8) Rod Nut, 7W2505
Parts Include in Premium Overhaul Kit
(4) Piston, 185-0104
(1) Piston Ring Set, 185-0109
(1) Main Bearing Set, 067-6869
(1) Rod Bearing Set, 4P-9944
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 4W-5360 (To Engine Serial Number: 5MF1183)
(1) Rear Crankshaft Seal, 209-9218 (To Engine Serial Number: 5MF1184)
(1) Head Gasket Set, 187-1290
(1) Lower Gasket Set, 187-4968
(4) Piston Pin Bushing, 138-2048
(1) Camshaft Bearing, 036-5802
(8) Rod Bolt, 067-6883
(8) Rod Nut, 7W2505
(1) Valve Kit
(4) Intake Valve, 176-3134
(4) Exhaust Valve, 176-3137
(4) Intake Guide, 185-0882
(4) Exhaust Guide, 163-9256
(8) Valve Spring, 176-3139
(16) Valve Lock, 147-1979
