Description
Bore: 3.877 in / 98.476 mm
Engine Arrangment Numbers: 2W9777, 2W9778, 7C6074
MODEL 416 with engine serial numbers: 5PC1-UP
MODEL 426 with engine serial numbers: 7BC1-UP
Applications
BACKHOE LOADERS: 416, 426, 416C
CATERPILLAR: 554 Forwarder

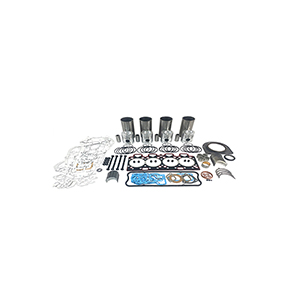

Parts Include in Overhaul Kit
(4) Cylinder Kit
(1) Piston, 4W-5819
(1) Piston Ring Set, 7W-7732
(1) Liner, 7C-3182
(1) Main Bearing Set, 067-6869
(1) Rod Bearing Set, 4P-9944
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 4W-5360
(1) Head Gasket Set, 4P-7577
(1) Lower Gasket Set, 7C-3801
(4) Piston Pin Bushing, 067-6158
(1) Camshaft Bearing, 036-5802
(8) Rod Bolt, 067-6883
(8) Rod Nut, 7W-2505
Parts Include in Premium Overhaul Kit
(4) Cylinder Kit
(1) Piston, 4W-5819
(1) Piston Ring Set, 7W-7732
(1) Liner, 7C-3182
(1) Main Bearing Set, 067-6869
(1) Rod Bearing Set, 4P-9944
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 4W-5360
(1) Head Gasket Set, 4P-7577
(1) Lower Gasket Set, 7C-3801
(4) Piston Pin Bushing, 067-6158
(1) Camshaft Bearing, 036-5802
(8) Rod Bolt, 067-6883
(8) Rod Nut, 7W-2505
(1) Valve Kit
(4) Intake Valve, 2W-6988
(4) Exhaust Valve, 7W-2522
(4) Intake Guide, 160-5436
(4) Exhaust Guide, 160-5438
(8) Valve Spring, Inner, 067-6053
(8) Valve Spring, Outer, 067-6052
(8) Valve Seal, 1W-5849
(16) Valve Lock, 067-6834
