Description
Bore: 4.133in / 105.00mm
Stroke: 5.00in / 127.00mm
Displacement: 269in3/ 4.4Lt
Engine Arrangement Numbers: 3521451, 3645753, 5714255
Backhoe Loaders: 416F, 420F, 420F2, 422F, 422F2, 424, 426F2, 428F, 430F, 430F2, 432F, 432F2, 434F, 434F2, 444F, 444F2

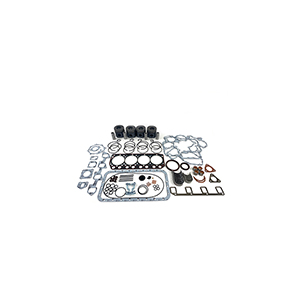

Parts Include in Overhaul Kit
(4) Piston Kit, 5081898
(1) Piston, 3636884
(1) Piston Ring Set, 4549560, 4549569, 4549473
(1) Main Bearing Set, 3537423
(1) Rod Bearing Set, 3603986
(1) Thrust Washer Set, 0329090, 0329091
(1) Front Crankshaft Seal, 4W5359
(1) Rear Crankshaft Seal, 2327449
(1) Head Gasket Set, 2763420
(1) Lower Gasket Set, 2722232
(4) Piston Pin Bushing, 2767478
(1) Camshaft Bearing, 2327440
(8) Rod Bolt, 3239312
Parts Include in Premium Overhaul Kit
(4) Piston Kit, 5081898
(1) Piston, 3636884
(1) Piston Ring Set, 4549560, 4549569, 4549473
(1) Main Bearing Set, 3537423
(1) Rod Bearing Set, 3603986
(1) Thrust Washer Set, 0329090, 0329091
(1) Front Crankshaft Seal, 4W5359
(1) Rear Crankshaft Seal, 2327449
(1) Head Gasket Set, 2763420
(1) Lower Gasket Set, 2722232
(4) Piston Pin Bushing, 2767478
(1) Camshaft Bearing, 2327440
(8) Rod Bolt, 3239312
(1) Valve Kit
(4) Intake Valve, 2255495
(4) Exhaust Valve, 2255499
(4) Intake Guide, 1850882
(4) Exhaust Guide, 1850882
(8) Valve Spring, 2255496
(16) Valve Lock, 1471979
