Description
Bore: 3.937 in / 100.00 mm
Stroke: 5.00 in / 127.00 mm
Compression Ratio: 17.25:1
Engine Serial Numbers: CPT844-UP
Engine Arrangement Numbers: 1763165, 1763166, 1791797, 1885096, 1885097, 1885098, 2062745, 2071121, 2071166, 2542236, 2639665, 2959745, 2974053, 2974054, 3020524, 3020525
Asphalt Pavers: AP600 Case, BB760 Bitelli
Caterpillar: 501 Harvester, 501HD Harvester
Eco Log: 564B Forwarder, 574B Forwarder
Hydraulic Excavators: M316C, M318C, M322C
Wheel Loaders: 930G
Vibratory Compactors: CS583E

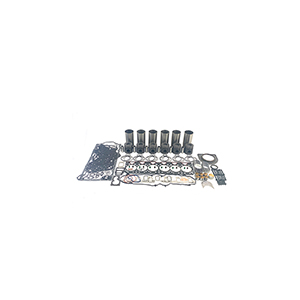

Parts Include in Overhaul Kit
(6) Cylinder Kit
(1) Piston, 216-8323
(1) Piston Ring Set, 217-1573
(1) Liner, 111-1815 (Flanged Fully Finished Liner)
(1) Main Bearing Set, 7W-4589
(1) Rod Bearing Set, 236-4397
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 209-9218
(1) Head Gasket Set, 216-9612
(1) Lower Gasket Set, 236-6930
(6) Piston Pin Bushing, 138-2048
(1) Camshaft Bearing, 036-5802
(12) Rod Bolt, 067-6883
(12) Rod Nut, 7W-2505
Parts Include in Premium Overhaul Kit
(6) Cylinder Kit
(1) Piston, 216-8323
(1) Piston Ring Set, 217-1573
(1) Liner, 111-1815 (Flanged Fully Finished Liner)
(1) Main Bearing Set, 7W-4589
(1) Rod Bearing Set, 236-4397
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 209-9218
(1) Head Gasket Set, 216-9612
(1) Lower Gasket Set, 236-6930
(6) Piston Pin Bushing, 138-2048
(1) Camshaft Bearing, 036-5802
(12) Rod Bolt, 067-6883
(12) Rod Nut, 7W-2505
(1) Valve Kit
(6) Intake Valve, 145-6855
(6) Exhaust Valve, 138-2050
(6) Intake Guide, 185-0882
(6) Exhaust Guide, 163-9256
(12) Valve Spring, 206-4127
(24) Valve Lock, 147-1979
