Description
Bore: 4.133 in / 105.00 mm
Stroke: 5.0 in / 127.00 mm
Displacement: 201 cubic inches / 3.3L
Tier 3
Engine Serial Numbers: E3G1-UP, E3S1-UP

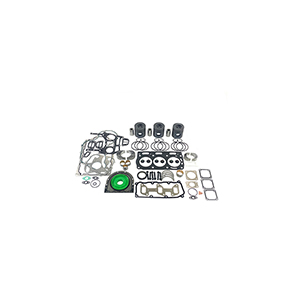

Parts Include in Overhaul Kit
(3) Piston & Rings, 277-6275
(1) Main Bearing Set, 261-6963
(1) Rod Bearing Set, 273-9299
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 232-7449
(1) Head Gasket Set, 291-8885
(1) Lower Gasket Set, 275-0885
(3) Piston Pin Bushing, 225-5438
(1) Camshaft Bearing, 232-7440
(6) Rod Bolt, 225-5439
Parts Include in Premium Overhaul Kit
(3) Piston & Rings, 277-6275
(1) Main Bearing Set, 261-6963
(1) Rod Bearing Set, 273-9299
(1) Thrust Washer Set, 032-9090, 032-9091
(1) Front Crankshaft Seal, 4W-5359
(1) Rear Crankshaft Seal, 232-7449
(1) Head Gasket Set, 291-8885
(1) Lower Gasket Set, 275-0885
(3) Piston Pin Bushing, 225-5438
(1) Camshaft Bearing, 232-7440
(6) Rod Bolt, 225-5439
(1) Valve Kit
(3) Intake Valve, 225-5495
(3) Exhaust Valve, 225-5499
(6) Valve Guide, 185-0882
(6) Valve Spring, 225-5496
(12) Valve Lock, 147-1979
