Description
Clearance- On Sale for 30% Off. ALL SALES ARE FINAL. THESE ITEMS ARE NON-REFUNDABLE.
We carry a large variety of high quality offset overlay hinges. This offset hinge is available in Satin Chrome, Black, and Stainless Steel finishes, with a choice of 3/4″ or 13/16″ door thickness.
Product Specifications:

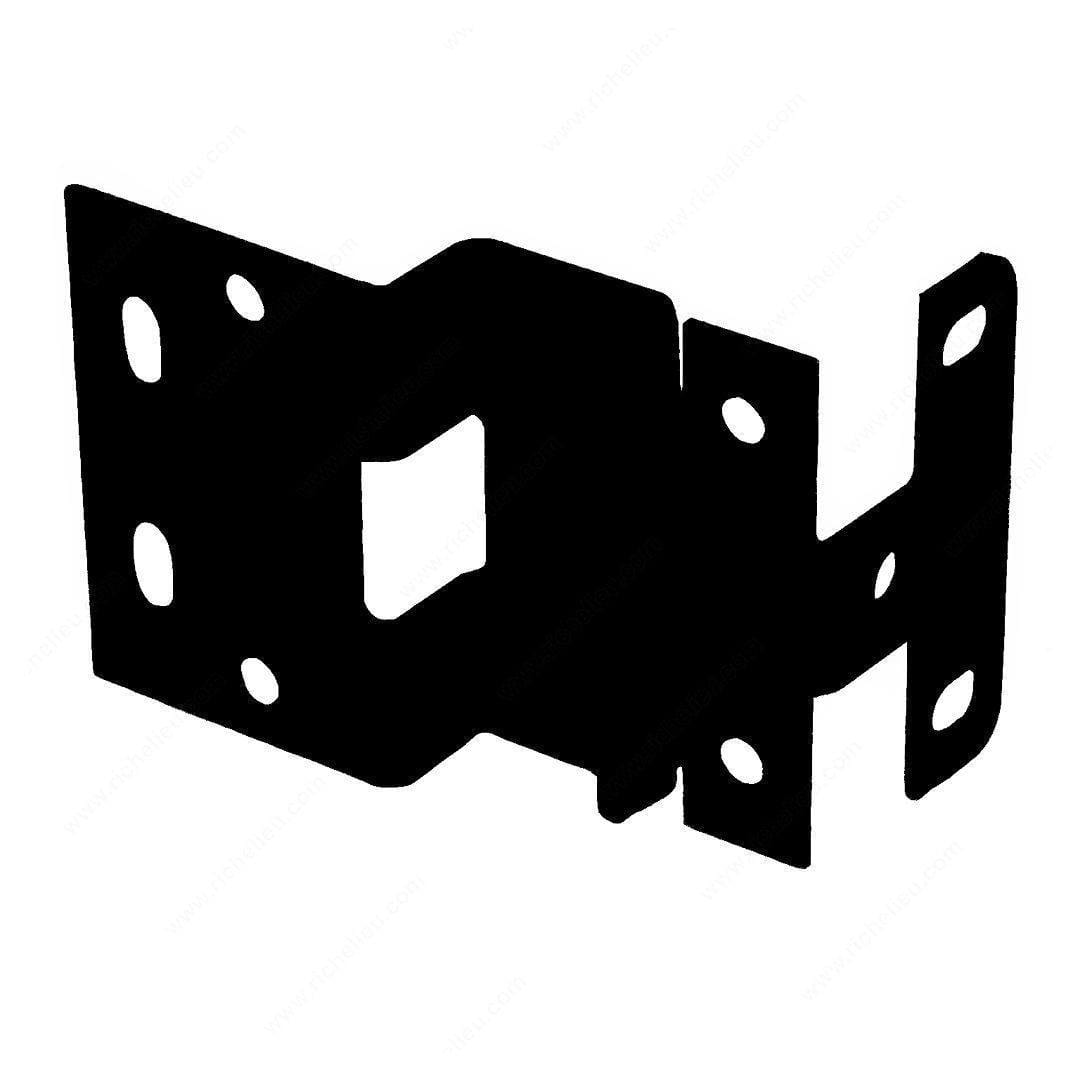

- Offset Hinges – 3/4″ Overlay Institutional Hinge
- Wraparound hinges
- Designed for the 32 mm side panel line boring system
- 9/32″ (7.1 mm) reveal (A-D)
- Finishes: Satin Chrome, Black, Stainless Steel 304
- Door Thickness: 3/4″ Inch, 13/16″ Inch
- Height: 2 3/4″ Inches
- Gauge: 2.4 mm
- Hinge Overlay: 23/32″ Inch
- Door Overlay: 15/32″ Inch
- Offset: 3/4″ Inch
- Load Capacity: 60 lbs
- Hinge Opening Angle: +270°
- Standards and Certifications: ANSI/BHMA 156.9 Grade 1
- Screws included
- 2 Pack
