Description

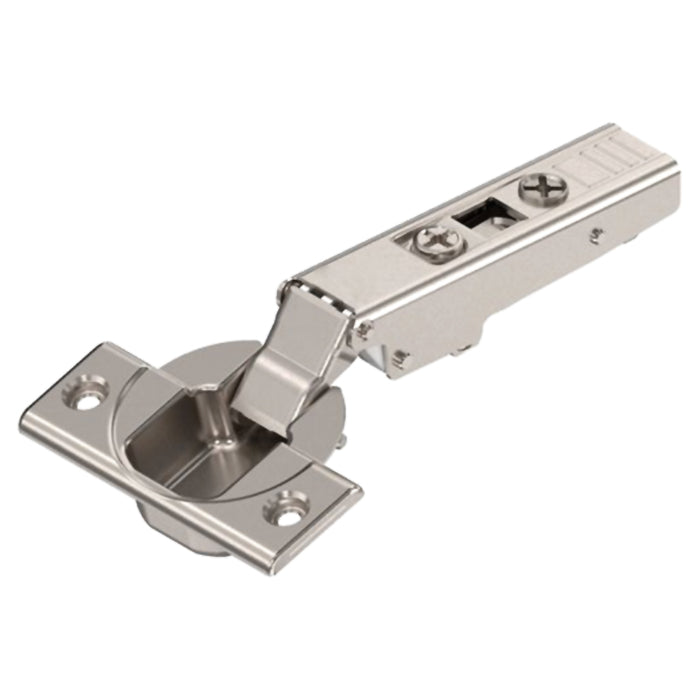

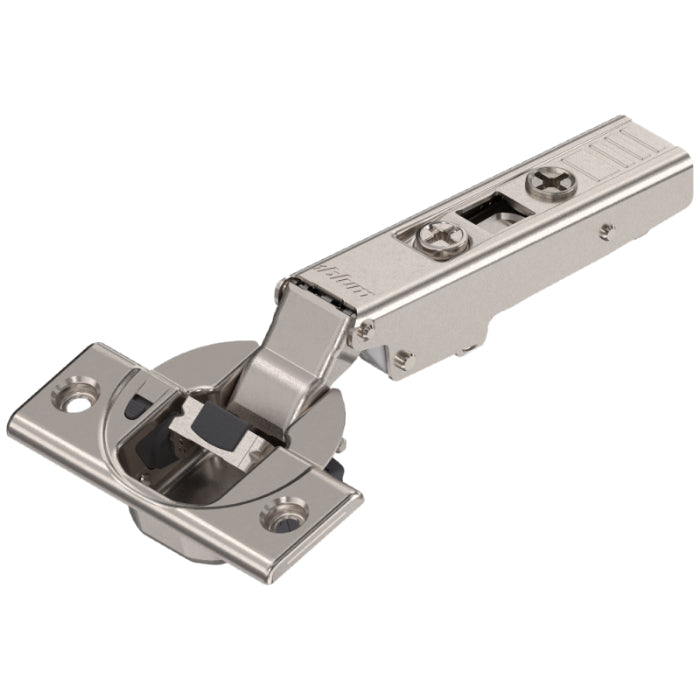

These Blum Clip Top Blumotion Concealed Cabinet Hinges have precise movement, like clockwork. Integrated Blumotion is a technical masterpiece that fits into the smallest of spaces and provides your furniture doors with silent, effortless closing. Blumotion can optionally be deactivated. Clip top Blumotion is designed to open and close at least 200,000 times, with a compelling quality of motion, to last the lifetime of the furniture.
Product Specifications:
- Clip Top Blumotion Cabinet Hinges
- For standard doors
- Concealed
- Overlay: Full
- Closing Type: Soft-Closing
- Opening Angle: 110°
- Fixing Type: Cam Lock
- Bore Distance Min/Max: 3″, 7″
- Boring distance range: 3 mm to 7 mm
- 45 mm boring pattern
- New geometry for door thickness up to 26 mm (1″)
- BLUMOTION is integrated into the hinge cup
- Deactivation switch for small/light doors
- Compatible with existing CLIP mounting plates and hinge arm cover caps
- Dowel hinges must be inserted with knock-in tool or universal insertion ram
