Description

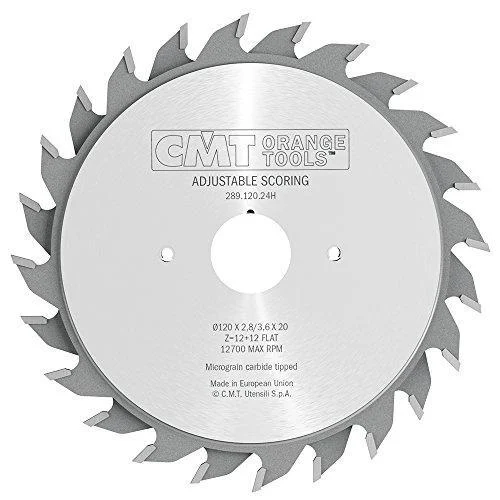

CMT Orange Tools, 289-Series, 289.120.24H, 120 x 12+12 x 2 Conical Scoring Saw Blade
Application: For chip-free scoring on plastic-laminated panels.
Machines: Horizontal and vertical sizing machines equipped with scoring device not allowing for cutting depth adjustment.
Material: Single or double-sided plastic-laminated panels, MDF.
- Diameter mm 120
- Number of cutting edges 12+12
- Bore Diameter mm 20
- Pin hole 2/3,1 – 3,8/32
- Type of grind FLAT
- Hook angle 12°
- Kerf thickness mm 2,8-3,6
- Teeth height mm 6-10
- CHROMIUM ISO grade KCR05
- Hardness (HV10) 2.150
- Transverse rupture strength (N/mm2) 2.500
All images are provided to us by the manufacturer for illustrative purposes only. Please see item description for specifications.
