Description

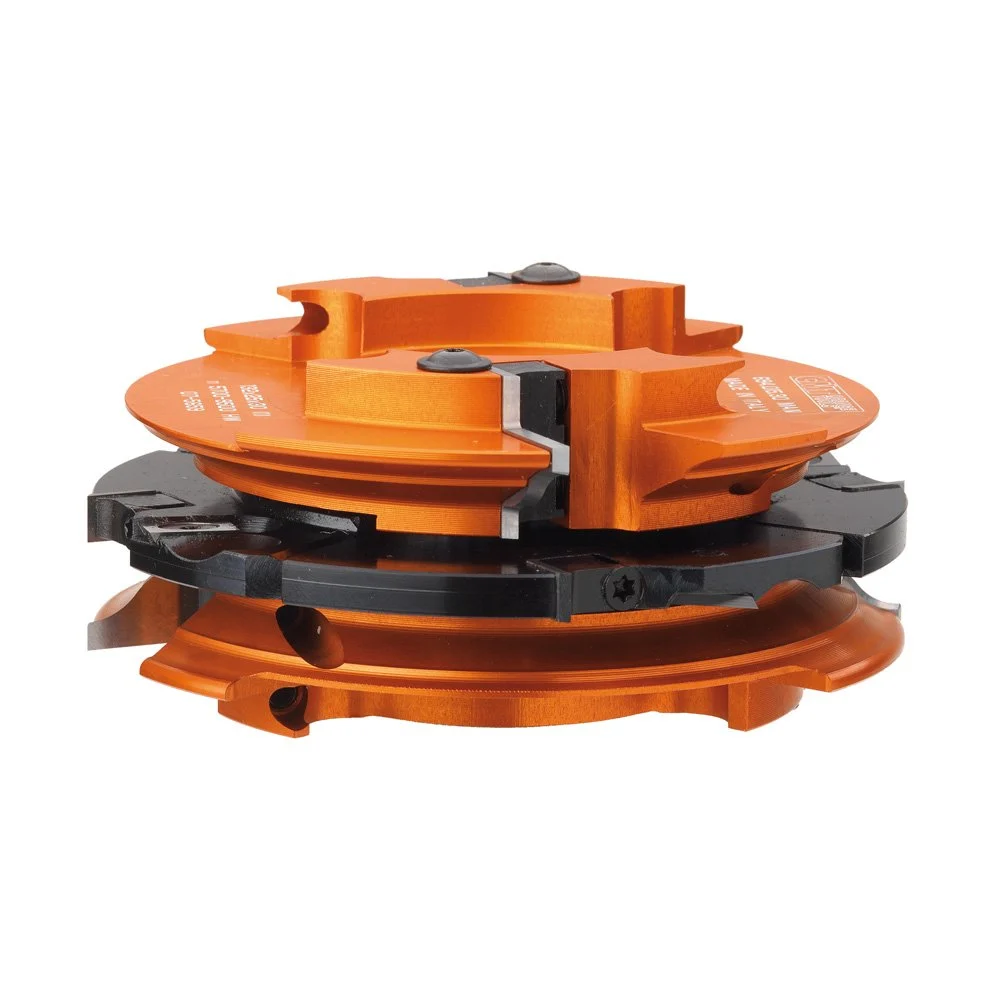

CMT 694.015.31 Profile and Counterprofile Set, 5-13/64-Inch Diameter, 1-1/4-Inch Bore
Features:
- Hard aluminum alloy body with high resistance to tensile and yield stress for cutter heads (1) & (2).
- Super-strength steel body for cutter head (3).
- 2 HWM knives type (A1) – (25×29,8x2mm – Z2).
- 2 HWM knives type (A2) – (25×29,8x2mm – Z2).
- 4 HWM knives (7,65x12x1,5mm – Z4).
- 4 HWM knives (14x14x1,2mm) for cutter heads (1) & (2).
- 12 spacer rings from 0,1mm to 3mm for cutter heads (1) & (2).
- 12 spacer rings from 0,1mm to 2mm for cutter head (3).
- Tools for manual feed (MAN).
- Pins for the automatic positioning of the knives.
- Supplied in a solid plastic box.
APPLICATION
- These versatile sets have been designed to make furniture and doors on soft and hardwood.
- It allows the insertion of five different knives to produce the most popular and classical profiles.
- The adjustable cutter, included in the set, can also be used individually to carry out grooves from 8mm (5/16″) to 15mm (5/8″) thick.
- For use on spindle moulders. Perfect on solid wood and panels with maximum 48mm (1-7/8″) in thickness.
| Diameter | 5-13/64″ |
| Bore Diameter | 1-1/4″ |
| Number of cutting edges | 2 |
| Spurs | 4 |
| Repetitions per minute | 5700~9500 |
