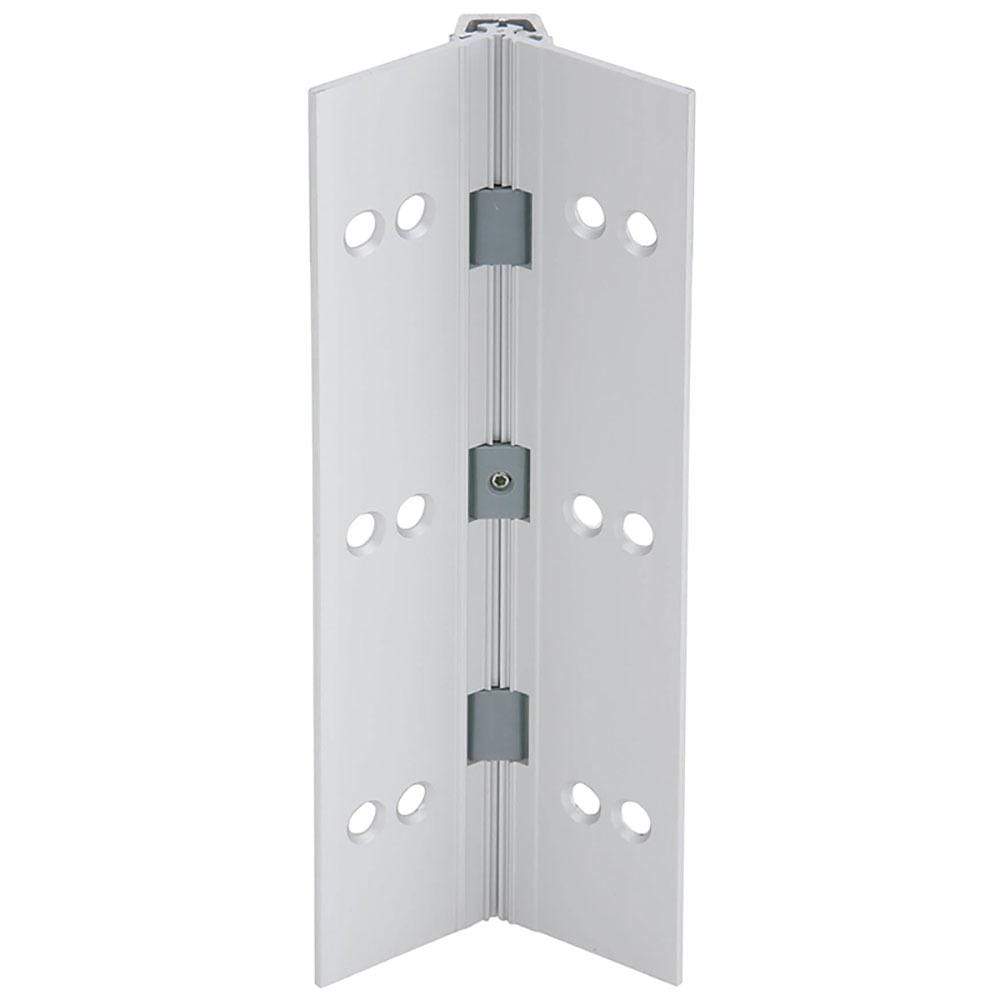

Description
These Continuous Geared Hinges are full mortise for narrow frame leaf and narrow door leaf. They are made of aluminum, measure 83″, and are available in a Clear or Dark Bronze finish.
Product Specifications:
- Continuous Geared Hinge
- Full mortise
- Narrow frame leaf
- Narrow door leaf
- Size: 83″ Inches
- Material: Aluminum
- Finishes Available: Clear, Dark Bronze
- Maximum Door Width: 48″
- For use with Short Leaf Applications (1-9/16″)
- No Inset
- Flush mounted
- Light Duty Commercial
- For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing
- Non-handed
- Beveled or square edge doors
- Standard Mounting Hardware: 12-24 X 3/4″ Steel Self Drilling, Self Tapping Screws
- Installation Guide
- Sold individually
