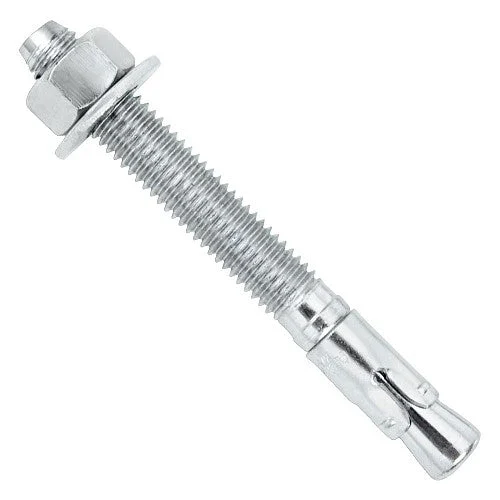

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.
Part Number : 7451SD1-PWR
Anchor Diameter : 3/4″
Useable Length : 12″
Thread Length : 9-1/2″
Pack 10 | Carton 20
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
Note: The image displayed is a representation of the product. Product dimensions and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please see above Product Description or click on View Specifications for more details
