Description
Product Description

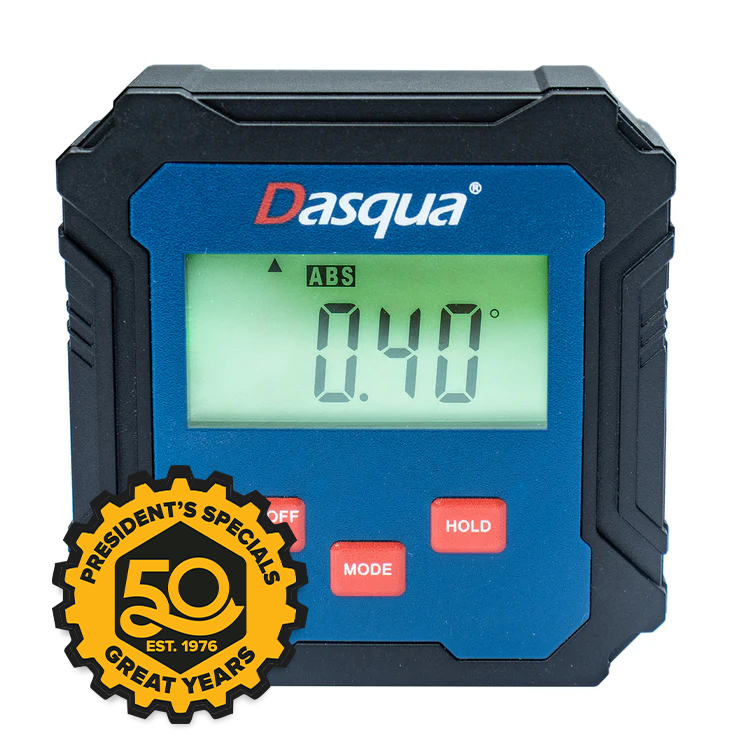

Designed for quick angle setup and checking, this compact digital angle box features a large backlit LCD that remains easy to read in different working positions. The display automatically inverts when used overhead, while absolute and relative measurement modes allow for both direct angle readings and comparative setup work.
A magnetic base makes it easy to attach the unit to metal surfaces such as saw blades and machine tables. The absolute level sensor requires no user calibration, helping simplify setup and everyday use.
Features
-
Large illuminated LCD display
-
LCD backlight for improved visibility
-
Absolute and relative measurement modes
-
Display numbers invert automatically when working overhead
-
Magnetic base for attachment to metal surfaces
-
Absolute level sensor requires no user calibration
-
Suitable for setting table saw blade angles and other workshop alignment tasks
Specifications
-
Measuring Range: 4 x 90°
-
Resolution: 0.1°
-
Accuracy: 0.2°
-
Working Temperature: 0-50°C
-
Working Humidity: Up to 85% RH
-
Battery: 1 x 1.5V battery
-
Battery Included: No
FAQ
What can this digital angle box be used for?
It can be used for tasks such as setting table saw blade angles, checking machinery angles, and other workshop alignment applications.
How accurate is it?
The unit has an accuracy rating of 0.2°.
What is the measurement resolution?
The display reads in 0.1° increments.
Does it have a magnetic base?
Yes. The magnetic base allows the unit to attach to suitable metal surfaces.
Can it measure relative angles?
Yes. It supports both absolute and relative measurements.
Does the display work when the unit is upside down?
Yes. The numbers automatically invert when working overhead.
Does it require calibration?
The supplied information states that the absolute level sensor requires no calibration from the user.
Is the battery included?
No. It requires one 1.5V battery, which is not included.
