Description

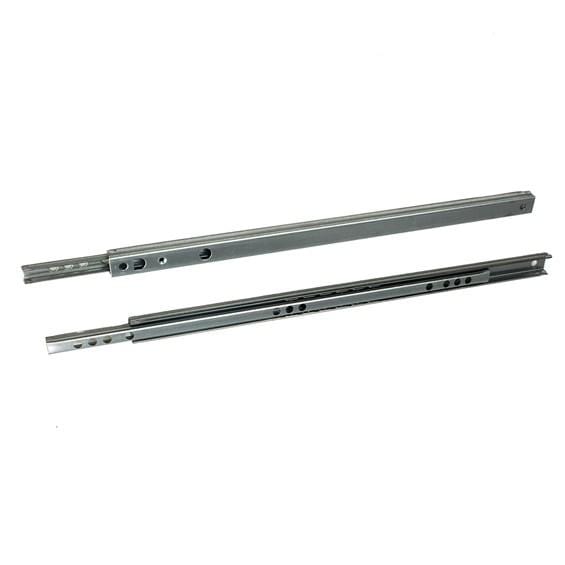

These Ball Bearing Drawer Slides are double acting, and made of steel to ensure a vibration free, smooth-as-silk rolling action for lighter drawer loads, desk trays, shelves, and computer keyboard pullouts. They are available in sizes from 6-1/8″ to 16-15/16″.
Product Specifications:
- Ball Bearing Drawer Slides
- Double Acting Mini Slide
- Sizes Available: 6-1/8” Inch, 7-3/8″ Inch, 8-5/8″ Inch, 9-7/8″ Inch, 11-1/8″ Inch, 12-3/8″ Inch, 13-5/8″ Inch, 14-15/16 ” Inch, 16-15/16″ Inch
- Only 17mm high x 10mm wide
- Precision Rolled Steel channels fitted to Steel ball-bearings in a Steel carrier ensure a vibration free, smooth-as-silk rolling action for lighter drawer loads, desk trays, shelves, and computer keyboard pullouts
- Especially preferred for drawers with 17mm side grooves
- All holes on 32mm centers
- May be attached with wood screws from the outside or with M4 machine screws from the inside into pre-tapped holes
- Non-handed, reversible
- Travel exceeds length of slide
- These drawer slides do not disassemble once installed.
-
Rated at 22 lbs.
- Sold in pairs
