Description

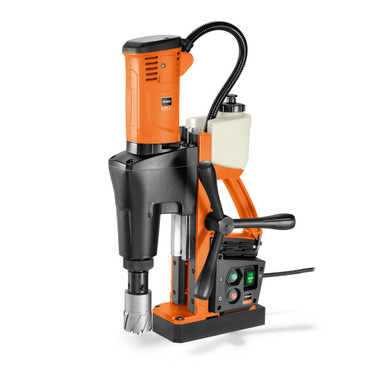

Endurance Magnetic Core Drill up to 2 in [50 mm]
The Endurance magnetic core drill is a lightweight and powerful 2-speed magnetic base drill with MT3 tool mounting and basic functionality for core drilling and twist drilling in the workshop and at the construction site.
Product Details
Built for tough use, this Endurance magnetic core drill features top-quality workmanship and a pivoting motor cable protection sleeve. The Slugger by FEIN high-performance motor delivers high torque for use with carbide and HSS core drills, while the extra-large stroke range supports twist drilling applications.
This drill is designed for uncompromising service life and steady work progress, offering an excellent price-to-performance ratio. It includes a mechanical 2-speed gearbox, higher RPM for optimal use with carbide cutters, MT3 tool mounting, and high magnetic holding force.
For added safety, the drill motor does not start when material thickness is less than 3/16 in [4 mm] if the magnetic holding force is too low. Additional features include an optimum power-to-weight ratio, integrated coolant tank to help extend core drill tool life, and an integrated hexagon socket holder.
*Optional using accessory.
Technical Data
Power Consumption: 1,280 W
Power Output: 616 W
Cutter Holder: 3/4″ straight shank
Full Load Speed: 260 / 520 rpm
No Load Speed: 350 / 680 rpm
Tool Mount: MT 3
Carbide Cutter Max. Diameter: 2 in [50 mm]
HSS Cutter Max. Diameter: 2 in [50 mm]
Cutter Max. Drilling Depth: 2 in [50 mm] / 3 in [75 mm]*
Twist Drill Max. Diameter: 7/8 in [23 mm]
Stroke: 5-5/16 in [135 mm]
Total Stroke Range: 10-1/4 in [260 mm]
Magnetic Holding Force: 2,810 lbs [12,500 N]
Cable with Plug: 9.8 ft [3 m]
Weight: 30.86 lbs [14.00 kg]
Vibration and Sound Emission Values
Sound Pressure Level LpA: 90.8 dB
Measurement Uncertainty KpA: 5 dB
Sound Power Level LWA: 103.8 dB
Measurement Uncertainty KWA: 5 dB
Peak Sound Value LpCpeak: 105.2 dB
Measurement Uncertainty KpCpeak: 5 dB
Vibration Value 1 αhv 3-Way: <2.5 m/s²
Product Feature
Hand feed wheel can be mounted on either side.
Uses
Mag Base Drilling in Metal up to 1-1/2″ Diameter: Well suitable
Mag Base Drilling in Metal up to 2″ Diameter: Well suitable
Twist Drilling with Drill Chuck: Well suitable
Twist Drilling with MT Fitting: Well suitable
Countersinking: Suitable
Overhead Work: Suitable
Installation Work: Well suitable
Workshop Jobs: Well suitable
