Description
Functions
Holes in series.
Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a complete set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router. Everything in a single Systainer.
- Everything that you need for a series of holes at hand in one Systainer
- With the LR 32 system – comprising the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system – precise rows of holes spaced 32 mm apart can be drilled with the Festool router
- The LR 32 guide rail is aligned quickly and parallel to the two side stops, which are positioned by means of an adjustable stop at the workpiece and guide rail
- The guide rail is precisely positioned with 9, 5, 16 or 32 mm edge clearance over the stopper in the longitudinal direction
- Centring mandrel for perfect centring of the router on the guide plate
- Spring-loaded positioning rocker for effective operation when drilling the hole series
- Perfectly guided through fine adjustment of the guide play and additional handle on the guide plate
- Properly secured thanks to the supplied guide rail clamps
- The most important hinge location cutters are already included in the set
- for use with hole line guide rails
Product Details
-
Everything included

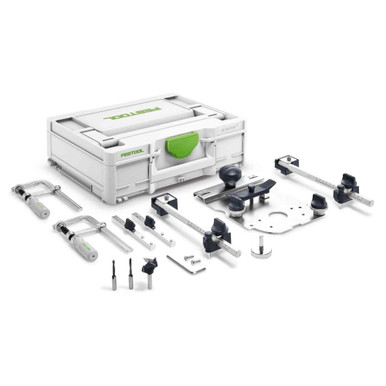

Everything in one Systainer: Guide plate, centring mandrel, operating tool, HW hinge location cutter with 35 mm diameter, HW dowel drill with 5 mm diameter (V-shaped tip), HW dowel drill with 5 mm diameter (with centre point and pre-cutter), two parallel side fences with adjustable stop, fastening clamp and two longitudinal stops.
-
Customised vehicle integration
Thanks to the special holder, Systainer³ can be directly integrated into bott vario3 vehicle equipment.
-
Ergonomic transportation
The front carrying handle allows for ergonomic carrying close to the body.
-
Open, close, connect with a single turn
All Systainer³ can be connected to one another and to other generations. The content is accessible at all times, without having to disconnect them first.
-
A tidy storage system
Systainer³ units can be connected to many other system accessories, e.g. mobile dust extractors.
-
All-round protection
Everything is effectively protected against dust, spray water or changes in temperature in the Systainer³.
-
Content security
Thanks to the integrated latch, the content of the Systainer³ can be locked securely.
Additional Info
- Creating custom shelving units with evenly spaced shelf support holes
- Building cabinets and closets with precise alignment for hinges and hardware
- Manufacturing furniture with adjustable shelving options
- Crafting custom storage solutions for workshops and garages
- Producing rear wall supports for various woodworking projects
- Installing fittings for kitchen, bathroom, and office cabinetry
- Assembling modular bookcases and entertainment centers
- Making pegboards with uniform hole patterns for tool organization
- Constructing display units for retail stores with adjustable shelving heights
- Crafting bespoke home decor items with intricate hole designs
Technical Data
Specifications
- Hole spacing: 32.00 mm
- Length of series of holes (without guide extension): 1400 / 2424
- Side stop setting range: 0 – 110 mm
- Weight: 1.98 lbs
