Hustler OEM 608776-4 Discharge Chute Pin Fits Select Hustler Fastrack Models – 2023 – Currents (72″ X-ONE, 60″ X-RIDE), (54″, 60″, 66″, 72″ Super Z), (60″, 66″, 72′ Super Z HD), (60″, 72″ Diesel Z), (Super 104), (72″ Super SF) Models.

Description

Hustler OEM 608776-4 Discharge Chute Pivot Pin

• Application: Commonly Used in Select



DISCHARGE CHUTE RETAINING PIVOT PIN



1. FasTrack (Model 943704, 943753, 943761),
2. 72″ X-ONE (Side Discharge)
3. 60″ X-RIDE,
4. 72″ Super SF
5. 54″, 60″, 66″, 72″ Super Z
6. 60″, 66″, 72″ Super Z HD
7. 60″, 72″ Diesel Z

LEFT & RIGHT MOWER DECK BELT/PULLEY SAFETY SHIELD PIVOT PIN



1.  Super 104

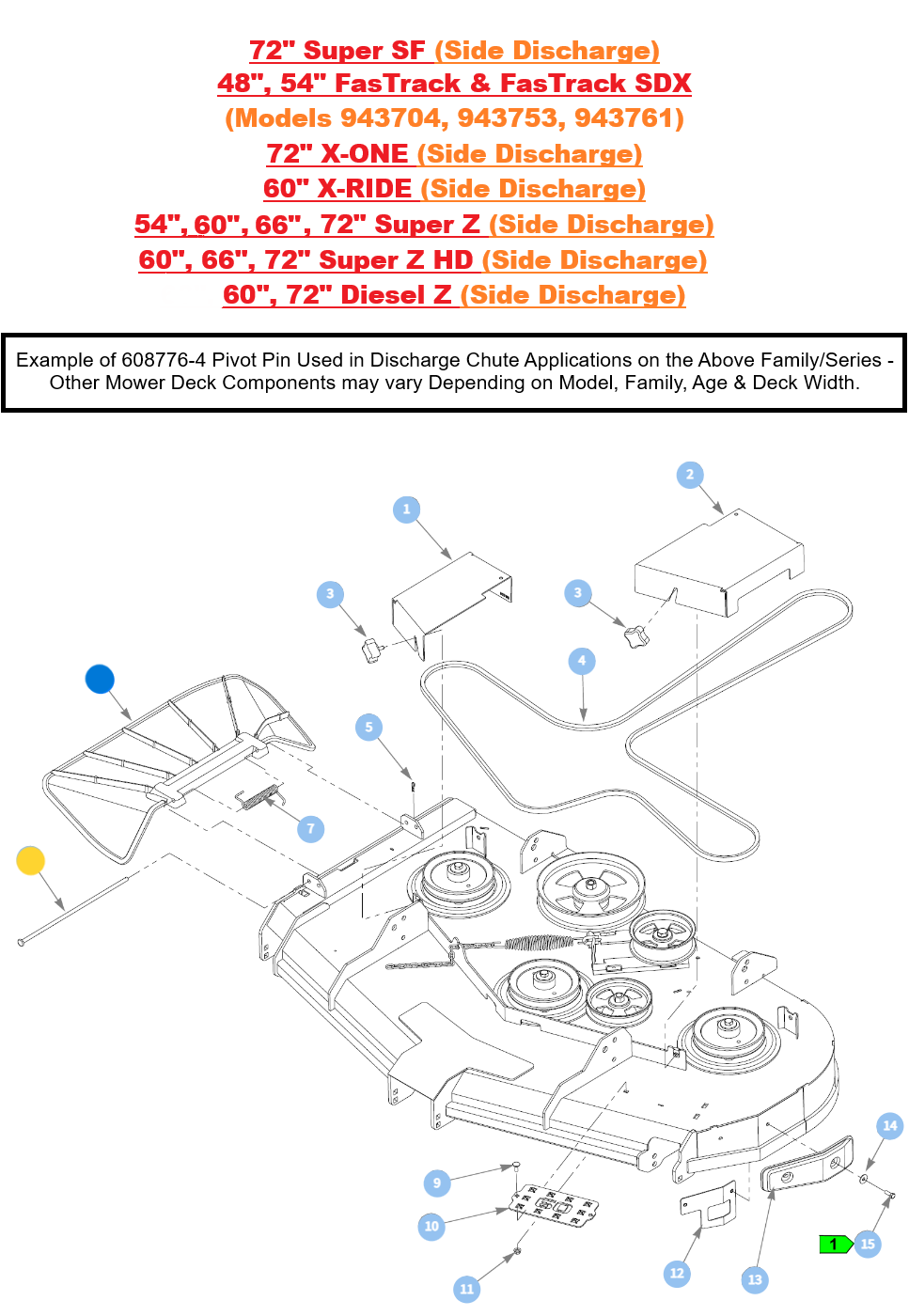

Refer to Images Above, Special Notes and Part References Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected.

ASSOCIATED RETAINING CLIP PIN & TORSION SPRING

Note: In Most Application 608776-4 & 602432 Pivot Pins can be Interchanged with Right Retaining Hardware (Nut or Clip-Pin).



• 706549 – Discharge Chute Clip Pin (Used With 608776-4)
• 602435 – Discharge Chute Torsion Spring

Model Fit Chart

Select FasTrack & FasTrack SDX



943704, 943753, 943761



X-ONE (72″ Side Discharge Models)



Models are Currently Not Listed Will Be Eventually



X-RIDE (ALL MODELS)



944074, 944868



Super Z (2023 – Current 54″, 60″, 66″, 72″ Side Discharge Models)



942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943886, 943894, 943910, 943928, 943936, 943944



Super Z Hyper Drive (2023 – Current 60″, 66″, 72″ Side Discharge Models)



942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943969, 943977, 943985, 943993, 944017, 944041, 944025, 944033



Diesel Z (2023 – 2025 60″, 72″ Side Discharge Models)



943233US, 943249US



Super 104(2023 – Current)



944058, 944066



Super SF (2023 – Current 72″ Side Discharge Models)



943514, 943530
