Description

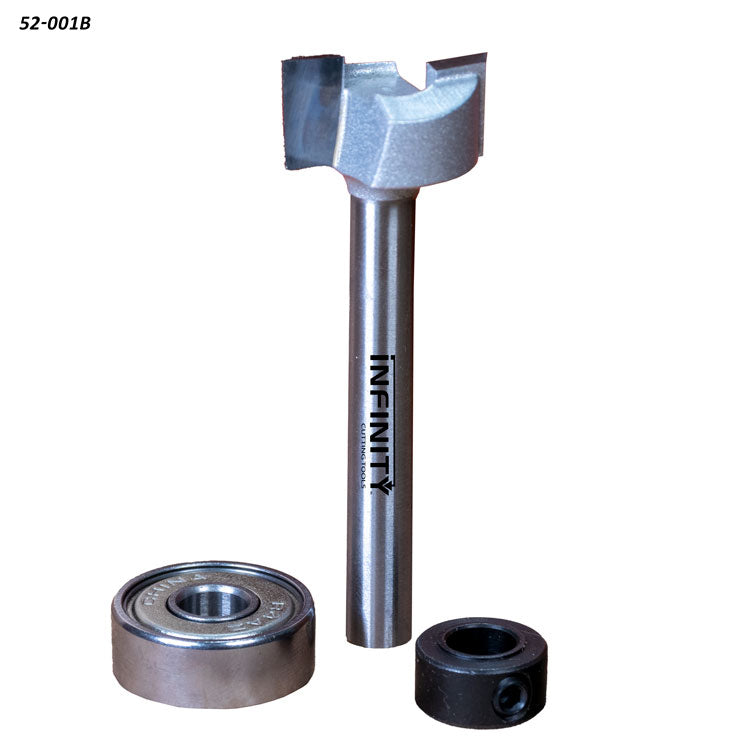

The Infinity Tools Dado & Planer router bits are made to remove serious amounts of material. With these router bits you’ll be able to cut dadoes, route signs, finish rough stock, and flatten large pieces! Our unique downshear design produces an extremely smooth surface, and thanks to our extra-thick micro-grain carbide tips you’ll be able to get multiple sharpenings out of each bit.
Specifications;
1/4″ shank x 3/4″ Cutter Diameter x 3/8″ Cutter Height and 3/4″ Bearing Diameter
Features Include:
- Downshear cutting action
- Micro-grain carbide cutting edges
- Silver non-stick coating for years of trouble-free service
Router Bit Suggested RPM & Safety Guidelines
Dado & Planer Router Bits
Infinity Tools’ Dado & Planer router bits allow you to clean out dados, rout signs, flatten rough stock, and even remove paint or varnish! These workhorse bits are must have items when you need to cleanly hog out material.
That’s where the Infinity Tools Mega Dado & Planer Router Bit comes into play. It’s the perfect choice for flattening slabs with a planing jig or in a C.N.C. It’s designed to make quick work of cutting large joints like tenons, rabbets, and dados. It’s similarly ideal for surfacing an end-grain cutting board, you know, the kind we think will fit through the planer but are sure it won’t come out the other side looking too good.
The Mega Dado & Planer Router Bit has several unique features that make it handle a large planing and jointing jobs with ease. First off, it’s big. With an impressive 2″ cutting diameter and a full 1″ cutter height, it’s perfect for big planing jobs and for making large tenons in projects like a Roubo bench build.
Its exclusive two + two geometry means it has four extra-thick micro-grain carbide cutters. Two of those cutters are set at an up-shear for getting tons of material up and out of the way, while the other two cutters are set at a down-shear to produce a super clean finish. This unique geometry also helps produce beautiful shoulders on tenons, dados, grooves, rabbets and even those breadboard ends. It just does not get much better than that.
We didn’t use 3mm micro-grain carbide cutters by chance. We chose them to give this workhorse the best life expectancy possible, and to ensure the router bit could be sharpened multiple times.
When it comes time to run this router bit there are a couple of guidelines I recommend following. First, don’t run this router bit in a handheld router, use it in a router table or a planing or scarfing jig. This is not the kind of bit you will be wanting to run freehand. Second, make sure to slow the router down. Most two-inch diameter bits can be run at 16,000 max RPM, but due to the size and weight of this bit I find I get the best results when we run it down around 12,000 rpm.
So why did we make such a beast of a planer router bit? Simple, we had many customers asking us for this tool. It’s a bigger and better dado and planer router bit that is perfect for efficient stock removal on large projects. Next time a project comes along that requires some serious stock removal, the Infinity Tools Mega Dado & Planer Router Bit is going to be up to the task of getting the job done right.
