Description

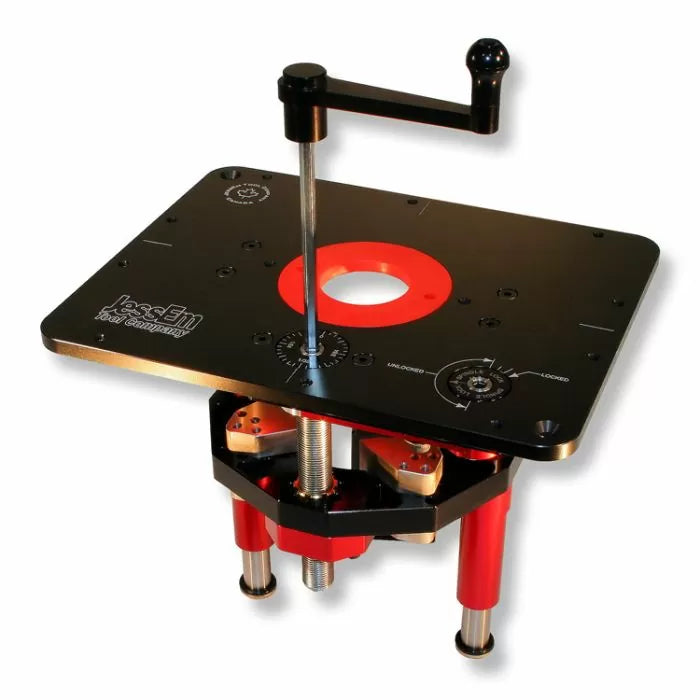

Mast-R-Lift II (02120) – Now Accepts 18 Different Routers, From 8 Different Mfg’s!
Gone are the days of having to purchase separate router pads to accommodate your specific router when using a lift. The JessEm Mast-R-Lift II ( router lift now accepts 18 different router motors straight out of the box, the ultimate convenience. JessEm have kept all of the great features of the previous Mast-R-Lift, but updated the design to include several new key features. Make bit changes and height adjustments with a simple twist of the convenient speed crank, from above the table! The Mast-R-Lift II is built for long-term use and is designed specifically for the Porter Cable 7518 router. The heavy duty aluminum insert plate measures 9-1/4″ x 11-3/4″ x 3/8″ thick and is precision CNC machined to guarantee flatness. The handle of the speed crank raises and lowers the bit a total of 3-3/4″ with 1/16″ resolution per rotation with adjustments as fine as .002″ possible. The plate features a 3-5/8″ diameter center hole that will accommodate even the largest raised panel router bits. Comes with a 1-1/2″ insert ring as standard, additional insert rings are available separately (see below).
Now fits the following routers – straight out of the box!
- Triton 3-1/4 HP Router Motor, TFBR001MOTOR
- Bora Router – 4.2″ Diam motor
- PC 7518 -690 – 890
- Bosch 1617 – 1618
- DeWalt 610 – 618
- Makita 1101
- Hitachi M12VC & KM12VC
- Milwaukee 5625- 5615 – 5616 – 5619
- Craftsman 17543 -17540 – 28190
- Rigid R29302
Other features include:
- Insert Plate Size 9-1/4″ X 11-3/4″ X 3/8″ Thick
- Vertical travel (3-1/4″)
- Comes with 2″ Tab-Loc insert ring, insert ring wrench, start pin and all hardware
- Spindle mount (2 R-8 double sealed bearings)
- Top plate surface treatment (Hard Anodizing)
- Built-in plate leveling system for a perfect fit.
- 3-3/4″ of total travel with .002″ resolution.
- Quick change motor installation with cam-lock clamp design.

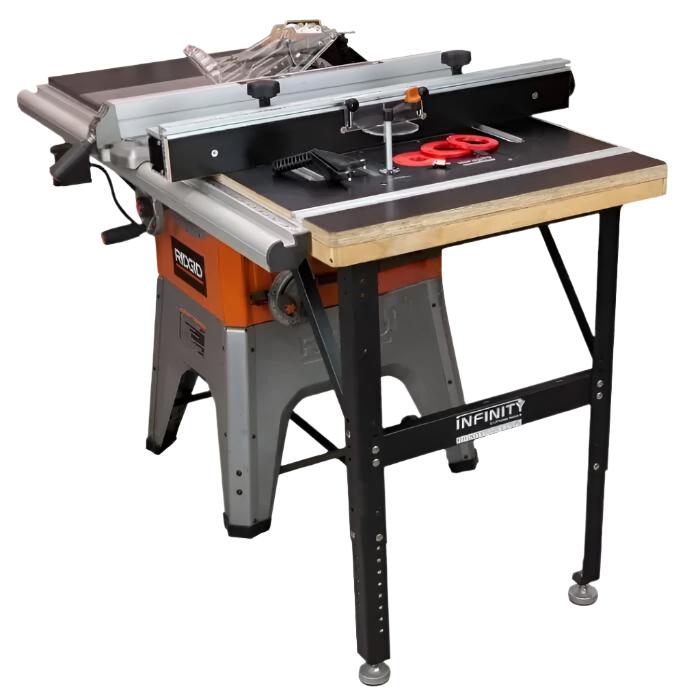

- Drops perfectly into our Universal Router Table Top, RTT-002.
