Description

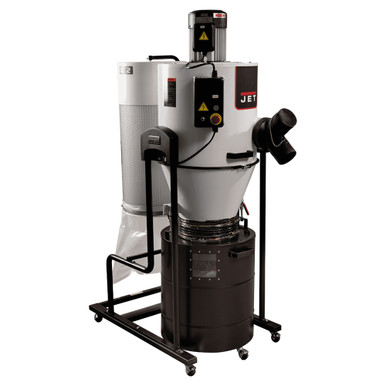

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
Features
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
- Double paddle manual cleaning system quickly cleans the pleated filter
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
- Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Included radio frequency remote control works from up to 50 feet away
- Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
- Swivel casters make it easy to move the unit around the shop
- Cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
Specifications
- Stock Number: JT9-717520
- 1-Hose Connection Diameter (In.): 6
- 2-Hoses Connection Diameter (In.): 4
- Canister Filter Length (In.): 22-5/8
- Collection Drum Capacity (gal.): 30
- Filter Efficiency (Micron): 1
- Footprint (L x W/In.): 50-5/8 x 25-7/8
- Impeller Material: Steel
- Max. Static Pressure (Wc.): 10.079
- MERV Value: 13
- Model Number: JCDC-2
- Motor Power (HP): 2
- Motor Voltage (V.): 230
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Static Pressure Loss (EU Method) (Wc.): 3.780
- Static Pressure Loss (US Method) (Wc.): 2.520
- Warranty: 5 Year
- Gross Weight: 235.0
- Net Weight: 207.0
Uses
- Collects fine dust from table saw operations.
- Captures wood chips from planers and jointers.
- Maintains cleaner air in woodworking workshops.
- Supports dust collection for CNC woodworking machines.
- Improves shop cleanliness during sanding projects.
- Reduces airborne dust for healthier work environments.
