Description

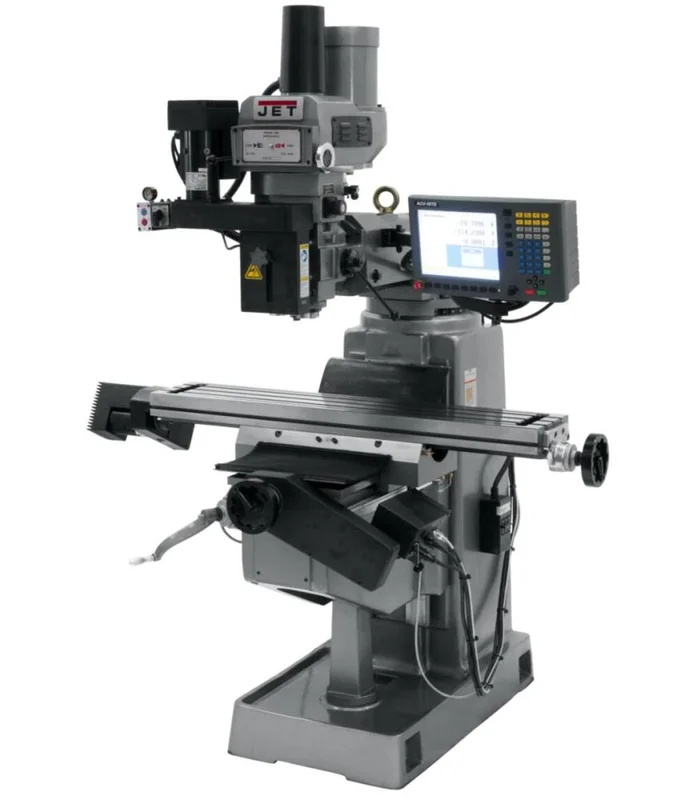

JET JTM-1050EVS2 Vertical Milling Machine
Constructed using the MeehaniteÆ casting process, the JTM-1050EVS2/230, 10″ x 50″ Electronic Variable Speed Milling Machine provides consistent and reliable operation.
The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine.
JET Mills have features you’ve come to expect and are backed by the industry-leading JET Two Year Warranty
Features
- Precision ground ball screws eliminate backlash for Prewired lateral movements
- Closed loop feedback using ACU-RITE precision linear encoders with 0.00005 In. resolution
- Powerful DC servo motor assemblies that include mounting castings and hardware
- Handwheels are included for manual operation
Specifications
Brand Name- JET
Assembled Weight (lbs)- 2860
California Proposition 65 Warning Required- Yes
Color- Gray
Country of Origin- Taiwan
Head Tilt (Left Or Right)- 90
Height (in)- 88.0
Horsepower (hp)- 3
MFG Part (OEM)- 690684
Package Contents- JTM-1050EVS2 Vertical Milling Machine
Package Depth- 0
Package Height- 0
Package Weight- 2900
Package Weight (lbs)- 2900
Product Condition- New
RPM- 1720
Stand Included- Yes
UL Listed- No
Unit of Measurement- Inch
UPC- 731325482102
Variable Speed- Yes
Voltage- 230 Volts
Warranty Type- 2 Years Limited
Weight (lbs)- 2580.0
X Axis, Longitudinal (in)- 0.0
Y Axis, Cross (in)- 0.0
