Description

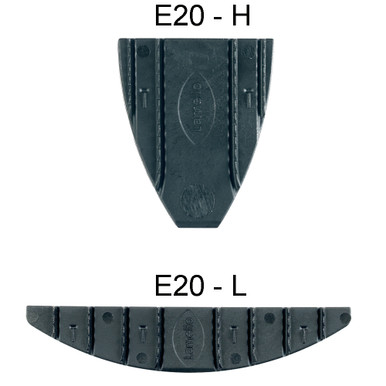

E20 is a self-clamping element and can be used with any Lamello biscuit joiner. The E20 is driven into the 4 mm groove using a hammer. During insertion, the curved ridges on each side of the connector hold in the groove and clamp the workpieces together. E20 serves as a perfect glueing aid in the workshop or on site. E20-L is suitable for surface joints such as picture frames, plinth or panel extensions. E20-H is used in the edge and serves as a plinth connector.
- Connects and clamps with one strike
- Cut grooves on both pieces simultaneously
- No clamps, no waiting time
|
Versatile A cutting principle for many different joining elements. |
Connects and clamps with a single strike The angled barbs ensure that the connection is clamped together during plunging. |
One cut for both workpieces The connector groove is cut with a biscuit joiner in both workpieces simultaneously |
Technical Information
- Size (mm): E20-L: 56 x 11.5 x 4 mm; E20-H: 23 x 29 x 4 mm
- Cutter: ø 100 x 4 x 22
- Material: Fiberglass reinforced plastic
Uses
- Assembling picture frames using the E20-L for secure and aligned joints.
- Constructing or extending panels and plinths in carpentry and interior design projects with E20-L.
- Utilizing E20-H as a reliable connector for joining the edges of plinths in construction or renovation tasks.
- Facilitating the glueing process in workshops or on construction sites by using E20 to tightly hold workpieces in place.
- Employing E20 in various woodworking projects to ensure tightly clamped and stable joints without additional clamping tools.
