Description

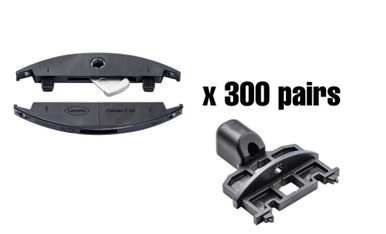

Clamex S-20 is a detachable connector for the Lamello system for material thicknesses from 16 mm and is fastened in the groove with screws. The symmetric 4 mm grooves can be created with any biscuit joiner. Clamex S-20 is connected to the counterpart with a lever and has a lateral installation tolerance. It requires no adhesive, enables aesthetic connections at all angles and is ideal for fixed or detachable connections.
- Open the connection time and time again with the rotating lever
- Use with any biscuit joiner
- Narrow connector allows installation into the edge in materials from 8 mm
|
Versatile A cutting principle for many different joining elements. |
Very aesthetic Only a small, barely visible tool opening of 6mm is used to open and close the connector. |
Technical Information
- Size (mm): 59 × 12 × 3.9 mm
- Cutter: Ø 100 × 4 × 22 mm
- Material connector: Fiberglass reinforced plastic
- Material lever: Zinc die cast
- Installation tolerance: Long. ± 1 mm/radial ± 0 mm
- Tensile strength (N) MDF: 620 N
- Tensile strength (N) Particle board: 490 N
- Tensile strength (N) Beech: 620 N
Uses
- Creating detachable furniture for easy assembly and disassembly
- Designing modular home or office furniture that can be reconfigured as needed
- Building flat-pack furniture for efficient transport and storage
- Assembling custom interior designs that may require future adjustments or expansions
- Constructing temporary exhibition stands or trade show booths
- Facilitating quick repairs or upgrades to existing furniture without needing adhesive
- Crafting adjustable shelving or storage systems that can be modified with minimal effort
- Implementing joinery in architectural models or prototypes that require frequent modification
