Description
Complete Self-Closing Hydraulic Gate System with Lock & Keep
Upgrade your commercial gate with a complete Locinox Gate Hardware Kit engineered for security, durability, and smooth self-closing performance.
This all-in-one commercial hardware bundle includes a heavy-duty hydraulic gate closer hinge, keyed gate lock, and adjustable gate keep, giving you everything needed to install a secure, self-closing gate system for high-traffic environments.
Designed for professional installers and contractors, this kit delivers reliable closing performance, long-term outdoor durability, and code-compliant operation using industry-trusted Locinox components.
✔ Complete commercial gate hardware kit
✔ Smooth hydraulic self-closing performance
✔ Lockable gate for controlled access
✔ Weather-resistant components built for outdoor use
✔ Professional-grade Locinox hardware trusted worldwide

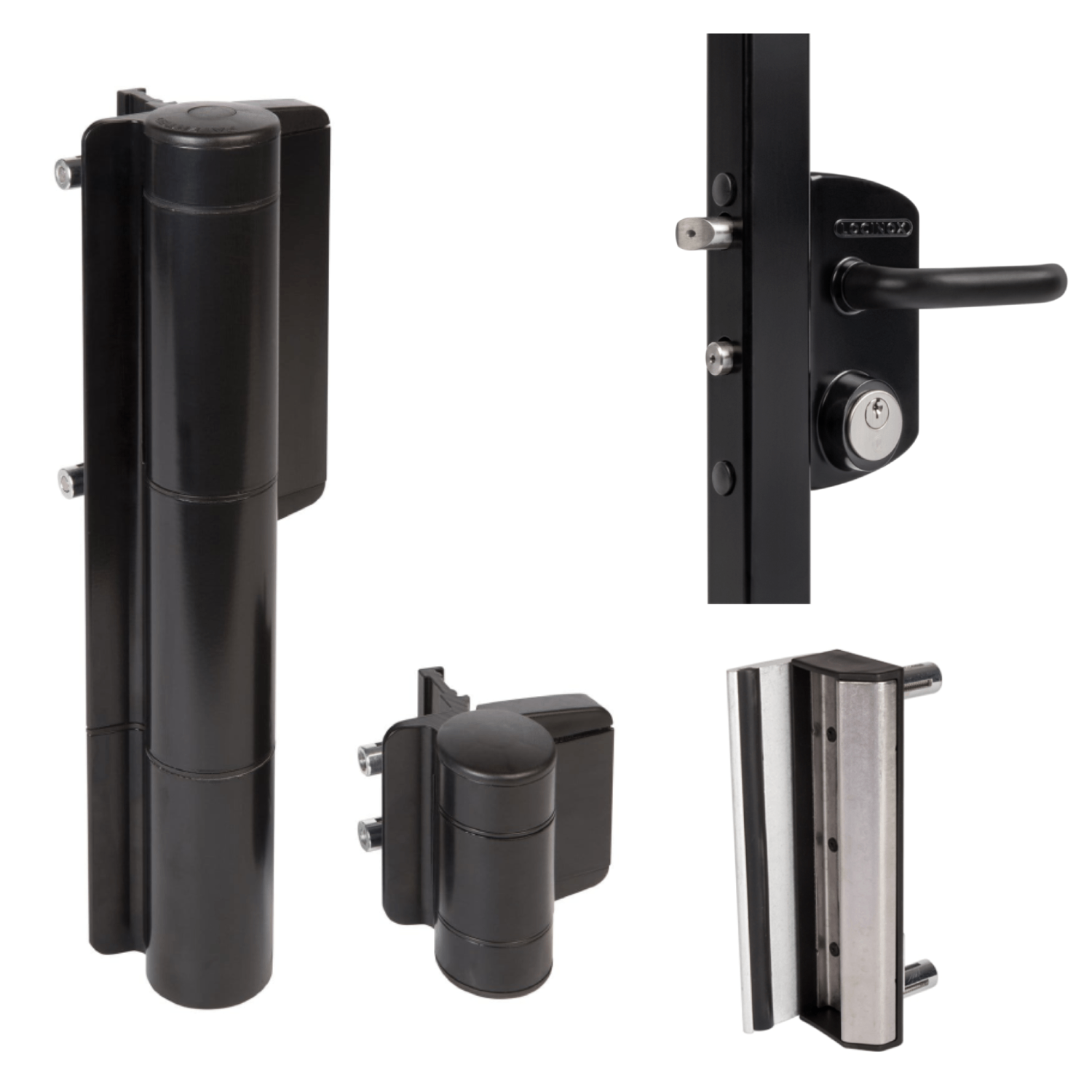

What’s Included in the Kit
This kit for new-fit manual gates includes the following components:
Save 15% when Purchasing the Bundle
• (1) Locinox Mammoth Hydraulic Gate Closer & Hinge
• (1) Locinox Surface Mounted Gate Lock (US Mortise Cylinder)
• (1) Adjustable Stainless Steel Gate Keep
Gate Compatibility Summary
Before ordering, confirm your gate meets these requirements.
Gate Requirements
-
Maximum Gate Weight: 300 lbs
-
Maximum Gate Width: 5 ft
-
Gate Frame: Square frame gates
-
Gate Profiles: 2″ – 2-3/8″
-
Installation Gap: 9/16″ – 1-3/8″
-
Gate Type: Manual swing gates
Ideal for ornamental metal gates and commercial access gates.
Component Details
Locinox Mammoth Hydraulic Gate Closer & Hinge
The Locinox Mammoth is a heavy-duty 180° hydraulic hinge and closer system designed for reliable automatic gate closing in commercial environments.
Key Benefits
• Smooth and controlled self-closing action
• Adjustable closing speed and final snap
• Consistent closing performance in all weather conditions
• Tamper-resistant construction for public areas
Specifications
Finish: Black
Gate Weight Capacity: Up to 300 lbs
Maximum Gate Width: 5 ft
Opening Angle: 180°
Height Adjustment: 3/4″ vertical adjustability
Installation Gap: 9/16″ – 1-3/8″
Performance Features
-
Weatherproof aluminum housing designed for exterior use
-
Active Thermal System maintains constant closing speed regardless of weather conditions
-
Patented hydraulic damping ensures smooth closing action
-
Double-bearing hinge design
-
Vandal and tamper resistant construction
-
Compatible with left and right opening gates
Installation
-
Fast installation with Quick-Fix mounting system
-
Dino hinge included
- Installation Guide
- Catalog Page
Locinox Surface Mounted Gate Lock (US Mortise Cylinder)
Secure your gate with a commercial-grade keyed locking system designed specifically for metal gate installations.
Specifications
Finish: Black
Compatible Gate Profiles: 2″ – 2-3/8″ square profiles
Cylinder Type: 1-1/8″ mortise profile cylinder
Deadbolt Throw: 7/8″ with one turn of the key
Features
-
Double cylinder deadbolt
-
Key-operated self-latching daybolt
- Keyed alike
-
Easy left or right gate configuration
-
Continuous bolt adjustment up to 3/8″
-
Four-hole mounting system with hex socket screws
-
Interchangeable with all Locinox surface mounted locks
Installation Note
The lock box requires 3-3/8″ spacing to the first picket, fitting most standard commercial gate designs. Installation Guide

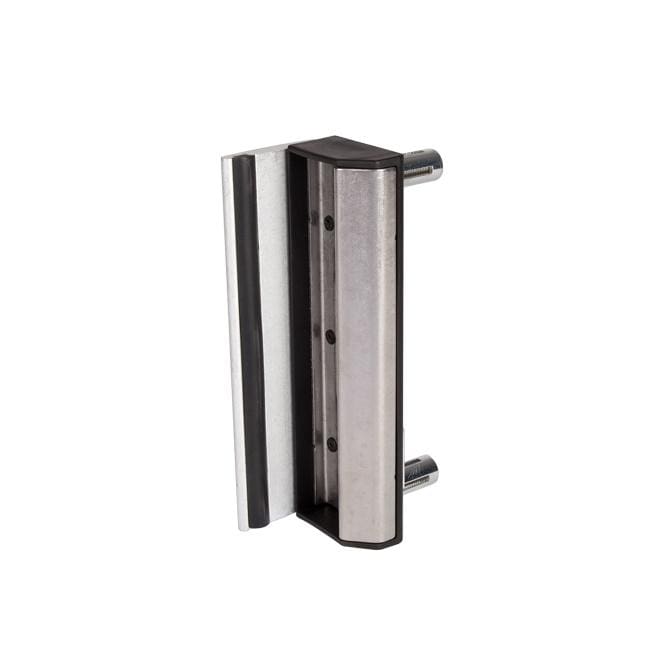

Adjustable Stainless Steel Gate Keep
This adjustable keep ensures precise lock alignment and secure gate closure.
Specifications
Finish: Black
Compatible Profiles: 1-1/2″ – 2-1/2″ square profiles
Features
-
Adjustable aluminum stop plate with rubber impact strip
-
Polyamide finished components
-
Durable extruded aluminum construction
-
Reversible for left or right gate installations
-
Quick-Fix mounting system for fast installation Installation Guide
Ideal Applications
This commercial gate hardware kit is designed for high-traffic gates, including:
-
Commercial properties
-
Apartment complexes
-
Industrial facilities
-
Schools and universities
-
HOA and community gates
-
Pool safety gates
-
Security and controlled access gates
Why Professionals Choose Locinox
Locinox is a global leader in premium gate hardware engineering. Their products are trusted by installers and contractors worldwide for:
✔ Precision hydraulic technology
✔ Long-lasting outdoor durability
✔ Secure commercial-grade locking systems
✔ Reliable self-closing performance
Installer Friendly Design
This kit is designed to simplify installation and long-term maintenance.
✔ Quick-Fix mounting system speeds up installation
✔ Adjustable hardware allows precise gate alignment
✔ Compatible with common ornamental gate profiles
✔ Weather-resistant materials for long outdoor lifespan
Locinox Kit vs Standard Gate Hardware
| Feature | Locinox Commercial Kit | Standard Gate Hardware |
|---|---|---|
| Hydraulic self-closing hinge | ✔ | ✘ |
| Weather-compensated closing speed | ✔ | ✘ |
| Commercial lock system included | ✔ | Sometimes |
| ADA compliant closing force | ✔ | Rare |
| Professional installer hardware | ✔ | ✘ |
