Reliable Self-Closing Gate Performance for Residential Installations
The Locinox Tiger Residential Gate Closer & Lock Kit delivers smooth, controlled gate closing in a compact, installer-friendly system. Designed for new-fit manual residential gates, this bundle provides dependable hydraulic closing performance while maintaining a clean, professional installation.
Built for contractors and gate installers, the system ensures consistent closing speed, long-term durability, and quick installation, making it an ideal upgrade for residential access gates that require reliable self-closing functionality.

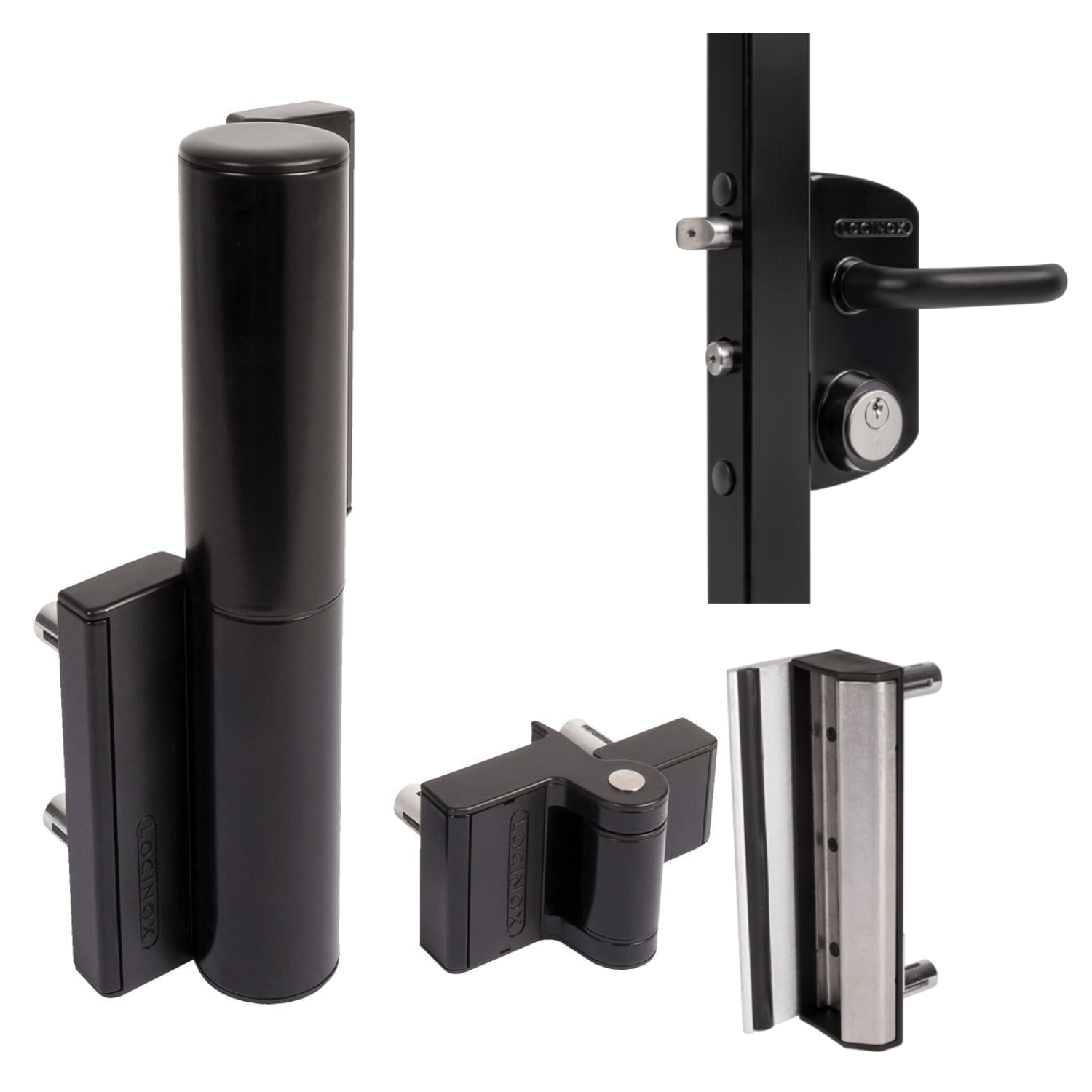

What’s Included in the Kit
This complete bundle provides the core hardware needed for controlled automatic gate closing.
Save 15% when Purchasing the Bundle
(1) Locinox Tiger Hydraulic Gate Closer & Hinge
(1) Locinox Surface Mounted Gate Lock (US Mortise Cylinder)
(1) Adjustable Stainless Steel Gate Keep
Gate Compatibility Summary
This bundle is designed specifically for residential square frame gates with light-to-moderate weight requirements.
Supported Gate Specifications
• Maximum Gate Weight: 165 lbs
• Maximum Gate Width: 3.5 ft
• Gate Frame Type: Square frame gates
• Compatible Gate Profiles: 2″ – 2-3/8″
• Installation Gap: 7/16″ – 1″
Compatible with left- or right-hand gate configurations.
Component Details
Locinox Tiger Hydraulic Gate Closer & Hinge
Locinox Tiger Hydraulic Gate Closer & Hinge is a compact 180° hydraulic hinge system that combines gate support and self-closing functionality into one professional-grade unit.
Designed for residential gates, it delivers controlled closing action and reliable performance in changing outdoor conditions.
Key Benefits
• Smooth hydraulic self-closing action
• Adjustable closing speed and final snap for secure latching
• Consistent closing performance in all weather conditions
• Vandal-resistant design for residential and light-duty environments
• Compact system that integrates hinge and closer
Features
- Patented hydraulic damping system for temperature-stable closing performance
- Weatherproof powder-coated aluminum housing for exterior durability
- 180° gate opening capability
- Designed for left- or right-hand turning gates
- Quick-Fix mounting system for fast installation
Specifications
• Finish: Black
• Gate Weight Capacity: Up to 165 lbs
• Maximum Gate Width: 3-1/2 ft
• Opening Angle: 180°
• Vertical Adjustment: 3/4″ height adjustability
• Installation Gap: 7/16″ – 1″
Installation Notes
• Fast fixation using Locinox Quick-Fix bolts
• Includes Puma hinge
• Installation Guide
• Catalog Page
Locinox Surface Mounted Gate Lock (US Mortise Cylinder)
Secure your gate with a commercial-grade keyed locking system designed specifically for metal gate installations.
Specifications
Finish: Black
Compatible Gate Profiles: 2″ – 2-3/8″ square profiles
Cylinder Type: 1-1/8″ mortise profile cylinder
Deadbolt Throw: 7/8″ with one turn of the key
Features
-
Double cylinder deadbolt
-
Key-operated self-latching daybolt
- Keyed alike
-
Easy left or right gate configuration
-
Continuous bolt adjustment up to 3/8″
-
Four-hole mounting system with hex socket screws
-
Interchangeable with all Locinox surface mounted locks
Installation Note
The lock box requires 3-3/8″ spacing to the first picket, fitting most standard commercial gate designs. Installation Guide
Adjustable Stainless Steel Gate Keep
This adjustable keep ensures precise lock alignment and secure gate closure.
Specifications
Finish: Black
Compatible Profiles: 1-1/2″ – 2-1/2″ square profiles
Features
-
Adjustable aluminum stop plate with rubber impact strip
-
Polyamide finished components
-
Durable extruded aluminum construction
-
Reversible for left or right gate installations
-
Quick-Fix mounting system for fast installation Installation Guide
*]:pointer-events-auto scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]” tabindex=”-1″>
Ideal Applications
This bundle is designed for residential and light-duty gate installations where controlled automatic closing is required.
Common uses include:
• Residential garden gates
• Side yard security gates
• Pool access gates
• HOA property entrances
• Light commercial property gates
• Apartment building access gates
Why Professionals Choose Locinox
Locinox is globally recognized for high-quality gate hardware engineered for professional installation.
Contractors rely on Locinox for:
• Precision-engineered gate hardware
• Weather-resistant materials built for outdoor environments
• Hydraulic technology for smooth closing performance
• Reliable long-term durability
• Installer-friendly mounting systems
The Tiger closer reflects Locinox’s commitment to performance, reliability, and professional installation efficiency.
Installer Friendly Design
The Tiger system is engineered to reduce installation time while ensuring accurate alignment and reliable operation.
Key installer benefits include:
• Quick-Fix bolt system speeds up mounting
• Integrated hinge and closer design reduces hardware complexity
• Vertical adjustability (¾”) for precise gate alignment
• Wide installation gap tolerance (7/16″ – 1″)
• Compatible with standard square gate frames
This allows contractors to complete installations quickly, accurately, and with fewer adjustments.
Hardware Comparison
| Feature | Locinox Tiger Bundle | Standard Gate Hardware |
|---|---|---|
| Automatic Self-Closing | ✔ Hydraulic controlled closing | ✖ Often requires separate closer |
| Temperature Stability | ✔ Consistent hydraulic performance | ✖ Closing speed changes with weather |
| Installation Speed | ✔ Quick-Fix mounting system | ✖ Multi-component installation |
| Gate Opening Range | ✔ 180° opening | ✖ Often limited opening angle |
| Adjustability | ✔ Closing speed + final snap adjustment | ✖ Limited adjustment |
| Professional Durability | ✔ Commercial-grade components | ✖ Basic residential hardware |
