Description
Circular sawing reaches its apex with the MT55CC Plunge/Track saw. As a plunge cut saw, the saw blade is contained in the body of the saw. This makes it safer and easier to use on a track system. With or without an extraction vacuum, it also creates a cleaner workspace because the dust is contained in the guard. Cutting depth adjustments can be made precisely using the pointer on the scale. The angle adjusts from 0 to 45°, but can be overridden to +48 or -1 when a little more is needed in either direction. A scoring system to 2.5mm depth is available for cutting laminates splinter-free.
Features
- The ultimate track saw for cutting expensive materials up to 2in thick with no margin for error
- Powerful 13.5 amp CUprex Compact motor
- Compatible with Mafell Guide Rail System and other guide rail systems as well
Includes

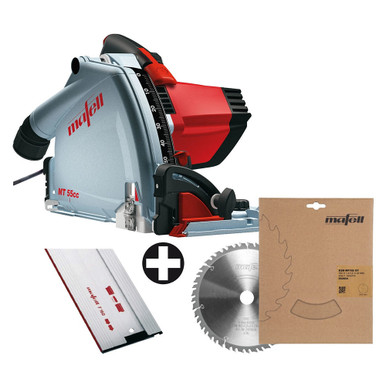

- Plunge-cut saw MT 55 cc in MAFELL-MAX917612
- TCT sawblade 162 x 1.2/1.8 x 20 mm (6 3/8 in.), 48 alternating teeth 092584
- T-MAX Systainer
Specifications
- Cutting depth at 0° on track: 0 to 2in
- Cutting depth at 45° on track: 0 to 1-3/8in
- Cutting depth at 0° off track: 0 to 2-3/16in
- Cutting depth at 45° off track: 0 to 1-9/16in
- Tilt range: -1 to 48°
- Saw blade diameter: 6-1/4in to 6-3/8in
- Nominal speed – no load: 3,600 to 6,250 rpm
- Motor: 120 V / 60 Hz
- Current: 13.5 A
- Weight: 10 lbs.
Uses:
- Drilling deep holes in wooden beams
- Creating holes for wooden dowels in joinery
- Boring through holes in fence posts
- Making pilot holes for large screws
- Installing wiring through wooden structures
- Drilling holes for plumbing in wooden frames
- Crafting deep mortises for timber frame construction
- Creating ventilation shafts in wooden items
- Forming channels for metal rods in custom furniture
- Drilling holes for decorative purposes in wood crafts
