Description

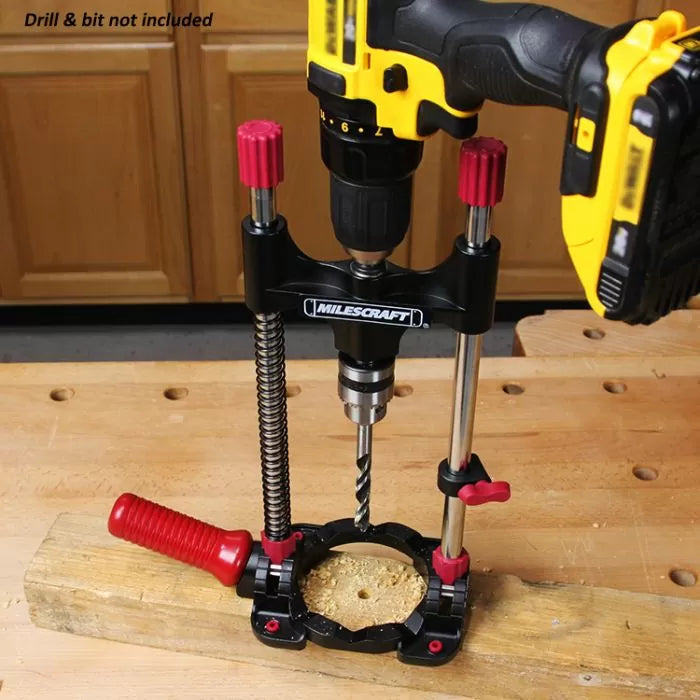

A Portable Drill Guide for Use Almost Anywhere
With the Milescraft DrillMate portable drill stand, you can drill straight holes, angled holes, on the edge of a board or even round stock. Everyone knows that the success of many DIY projects depends on drilling straight and accurate holes. Now you can add a whole new level of accuracy with this drill guide jig when drilling holes with your standard hand drill.
DrillMate Metal Head
- Ball bearings for spindle support
Innovative Metal Base With Angle Readout
- Self-centering drill guide base
- Angle readout for setting drilling angles to 45°, 60°, 75°, and 90°
- V-groove for drilling on round stock
- Non-slip TPE feet prevent slipping and marring on the work surface
- Mounting holes for mounting with screws when needed
Metal Angle Adjusters
- Allows you to easily lock your selected drilling angle into place
Adjustable Stop Collar
- For repetitive drilling
3/8” Keyed Chuck
- Compatible with most 3/8” drill accessories
Auxiliary Handle
- Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing
Features:
- Metal and plastic construction
- 3/8″ Keyed chuck
- Maximum drill bit clearance: 7.50″
- 3-1/2″ in diameter Base Opening
- Compatible with 3/8” and 1/2” power drills
- Weight: 4.13 lbs
Drill Head Clearance with Spring and Depth Stop
- Max Travel: 6.30″
- Minimum Drill Bit Length: 1.20″
Drill Head Clearance without Spring and Depth Stop
- Max Travel: 8.23″
- Minimum Drill Bit Clearance: 0.72″
