Description
Small, lightweight pressing tool: Weighs only 1.8 kg for greater user comfort. The tool records and saves every pressure. ONE-KEY enables the creation of professional reports via the ONE-KEY app. The 180-degree rotating head offers maximum flexibility for working in confined spaces. FORCE LOGIC pressure indicator: Provides visual confirmation of a high-quality connection. The patented one-hand operation enables working in tight spaces. Excellent pressing range up to 35 mm in metal and 40 mm in composite pipes. Communication between battery and tool. The pressing process does not start if there is not enough battery to prevent incomplete pressing. Precise 4-stage battery level indicator. FORCE LOGIC Long-lasting reliability: No limit on pressing cycles within the 3-year maintenance interval. REDLINK electronics – system communication between the tool and battery offers first-class system longevity. The REDLITHIUM battery offers a perfectly coordinated design, advanced electronics and lossless power delivery for longer service life and longer life than previous models. Flexible battery system: works with all MILWAUKEE M12 batteries
Technical data
weight of the transport case
battery 45536
Number of included Li-ion batteries
Weight with battery 2
voltage 1.9 (M12 B2)
Max. diameter of multilayer composite 12
Max. Diameter Metal 40
pipe diameter 35
Compatible with systems from the following providers 12, 14, 15, 16, 18, 20, 22, 25, 26, 28, 32, 35, 40
Press power ALB, Comap, Frankishe, Henco, IPA, Sanha: Nirosan, Tiemme
19

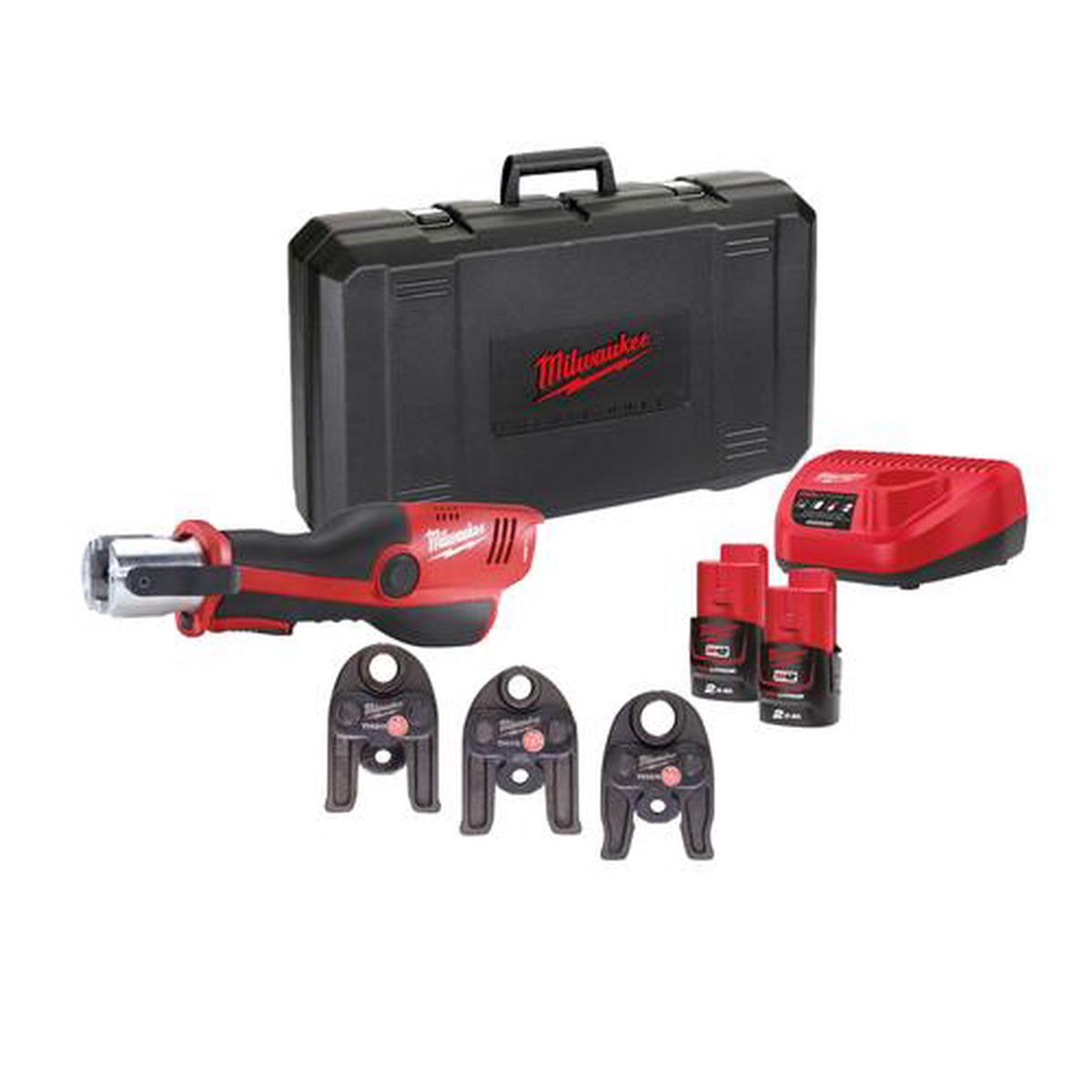

scope of delivery
2 x M12 B2 battery packs
C12 C charger
transport case
J12-TH16 press jaw
J12-TH20 press jaw
J12-TH26 press jaw
