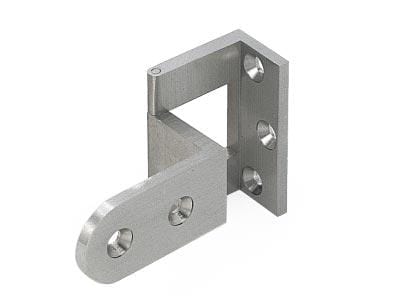

Description
Product Specifications:
- Recommended Door Specifications: Thickness: Recess Mount-for AHS-20, 22.5 mm (7/8″)
- for AHS-24, 27 mm (1-1/16″), Surface Mount-for AHS-20, 19.5 mm (3/4″)
- for AHS-24, 24 mm (1″), Width: Max. 450 mm (17-3/4″)
- Height: Max. 700 mm (27-9/16″), Weight: Max. 2.6 kg (5.7 lbs) per pair
| WEIGHT | 69 G |
| DIMENSIONS | 30.5 × 40 × 40 MM |
| HOLES |
5 |
| KNUCKLES |
3 |
| LOAD CAPACITY (KG/PAIR) |
2.6 |
| LOAD CAPACITY (LBS/PAIR) |
5.7 |
| MAX. DOOR HEIGHT (INCH) |
27-09-2016 |
| MAX. DOOR HEIGHT (MM) |
700 |
| MAX. DOOR WIDTH (INCH) |
17-03-2004 |
| MAX. DOOR WIDTH (MM) |
450 |
| MIN. DOOR THICKNESS (INCH) |
1-1/16 (RECESS MOUNT), 1 (SURFACE MOUNT) |
| MIN. DOOR THICKNESS (MM) |
27 (RECESS MOUNT), 24 (SURFACE MOUNT) |
| OVERALL LENGTH (MM) | WIDTH (MM) | HEIGHT (MM) | WEIGHT (G) |
| 40 MM | 30.5 MM | 69 G |
