Description
Product Description

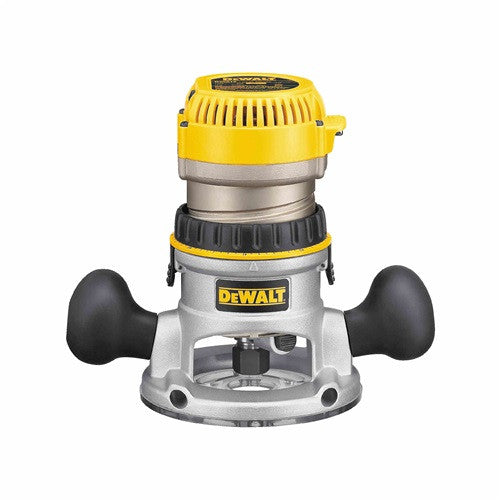

This 2-1/4 HP fixed-base router combines power, precision, and control for demanding routing applications. Its 12-amp electronic variable-speed motor operates from 8,000 to 24,000 RPM, allowing the cutting speed to be matched to the router bit, material, and application. Full-feedback electronic control helps maintain a consistent speed under load, while soft-start operation reduces start-up torque for improved control.
The micro-fine depth adjustment ring allows precise adjustments in 1/64″ increments. It also adjusts vertically, keeping the switch and cordset in a consistent position as the cutting depth changes. An adjustable, tool-free steel motor cam lock provides a secure hold while making depth adjustments and base changes quick and convenient.
Quick-release motor latches simplify motor removal for bit and base changes. A spindle-lock button supports single-wrench bit changes, while the self-releasing 1/4″ and 1/2″ collets provide secure bit retention and help prevent bits from becoming stuck.
The clear LEXAN sub-base improves visibility around the bit and accepts standard template guide bushings. Rubber overmoulded handles, a low centre of gravity, and selectable right- or left-side switch and cord positioning help provide comfortable, balanced control. A precision-machined die-cast aluminum base and motor housing deliver durability without unnecessary weight.
Features
- 2-1/4 maximum motor HP and 12-amp motor for demanding routing applications
- Electronic variable speed from 8,000 to 24,000 RPM
- Full-feedback control helps maintain a constant speed under load
- Soft-start operation reduces start-up torque for improved control
- Micro-fine depth adjustment in 1/64″ increments
- Vertical depth adjustment maintains a consistent switch and cord position
- Adjustable, tool-free steel motor cam lock provides fast, secure locking
- Quick-release motor latches simplify motor and base changes
- Spindle-lock button allows single-wrench bit changes
- Includes self-releasing 1/4″ and 1/2″ collets
- Long, eight-slot collet design improves bit retention and helps prevent stuck bits
- Clear LEXAN sub-base provides improved bit visibility
- Sub-base accepts standard template guide bushings
- Rubber overmoulded handles provide a comfortable grip
- Low-centre-of-gravity design supports balance and control
- Switch and cordset can be positioned for right- or left-handed operation
- Detachable cordset simplifies cord servicing
- Dust-sealed switch helps protect against dust ingestion
- Precision-machined die-cast aluminum base and motor housing
- Nickel-plated motor housing supports smooth, lasting depth adjustment
- Flat-top motor design simplifies bit and depth changes
Specifications
- Power Tool Type: Corded router
- Router Type: Mid-size
- Base Type: Fixed base
- Maximum Motor Horsepower: 2-1/4 HP
- Amperage: 12 amps
- No-Load Speed: 8,000 to 24,000 RPM
- Speed Control: Electronic variable speed with full feedback
- Base Diameter: 6″
- Collet Sizes: 1/4″ and 1/2″
- Depth Adjustment: Micro-fine adjustment ring
- Depth Adjustment Increments: 1/64″
- Spindle Lock: Yes
- Plunge Stroke: Not applicable
- Tool Weight: 7.2 lb
Comes With
- DW618M motor pack
- DW6184 fixed base
- 1/4″ collet
- 1/2″ collet
- Wrench
FAQ
What is the speed range of this router?
The electronic variable-speed motor operates from 8,000 to 24,000 RPM.
Does the router maintain its speed while cutting?
Yes. Full-feedback electronic control helps maintain a consistent motor speed under load.
How precise is the depth adjustment?
The micro-fine adjustment ring provides depth changes in 1/64″ increments.
What collet sizes are included?
The router includes both 1/4″ and 1/2″ collets.
Can router bits be changed with one wrench?
Yes. The spindle-lock button allows single-wrench bit changes.
Does the sub-base accept template guide bushings?
Yes. The clear LEXAN sub-base accepts standard template guide bushings.
Can the switch and cord be positioned for left- or right-handed use?
Yes. The switch and cordset location can be arranged for either right- or left-handed operation.
Is this a plunge router?
No. This configuration includes a fixed base and does not have a plunge stroke.
