Description

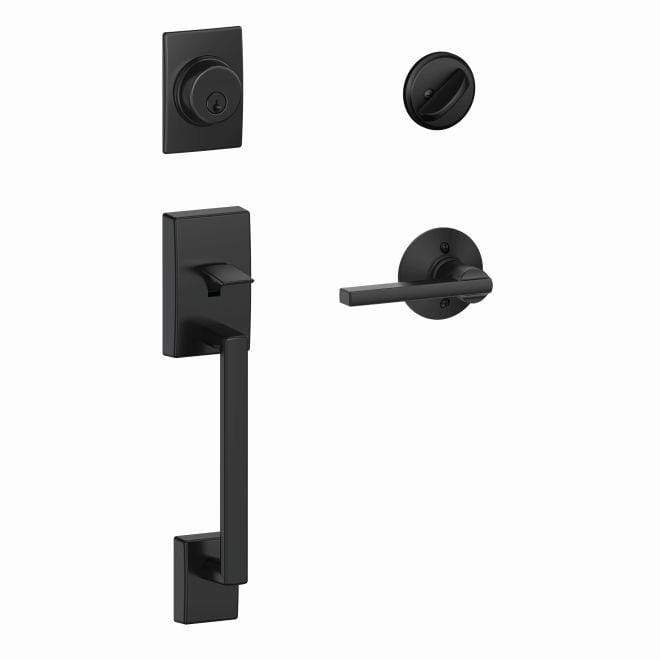

This Schlage Residential Lockset is a single cylinder complete handleset. It features easy installation with a Phillips screwdriver. It is for doors 1-5/8″ to 1-3/4″ thick and is available in a Matte Black finish.
Product Specifications:
- Schlage Residential Lockset
- With 12236 Latch and 10115 Strike
- Single cylinder complete handleset
- Century style exterior
- Latitude style interior lever
- Applications: Residential single and multi-family entrance doors
- Finish: Matte Black
- Handing: Reversible
- Door Thickness: 1-5/8″ to 1-3/4″
- Backset: Universal latches and deadbolts fit 2-3/8″ (60mm) or 2-3/4″ (70mm) backsets
- Strike: Round Corner Full Lip Strike and 1-1/8″ x 2-3/4″ Deadbolt Strike
- Keying: 5-pin tumbler with two keys per lock
- Inside Trim: Levers are zinc-based plated to match finishes indicated
- Outside Trim: Handlesets are solid forged brass; wrought brass trim rings with concealed security inserts
- Trim Rings and Security Inserts: F-Series Handlesets are furnished with 7/8 wrought brass cylinder trim rings. The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit
- One-Tool Installation – Installs with just a Phillips screwdriver
- Patented throughbolt slides up and down so you don’t have to patch/redrill your door
- Lifetime limited mechanical and finish warranty
- Graded Best in Residential Security, Durability, and Finish
- Certifications:
- Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 1
- Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
- Sold individually
- Installation Guide
- Door Prep Template
