Description

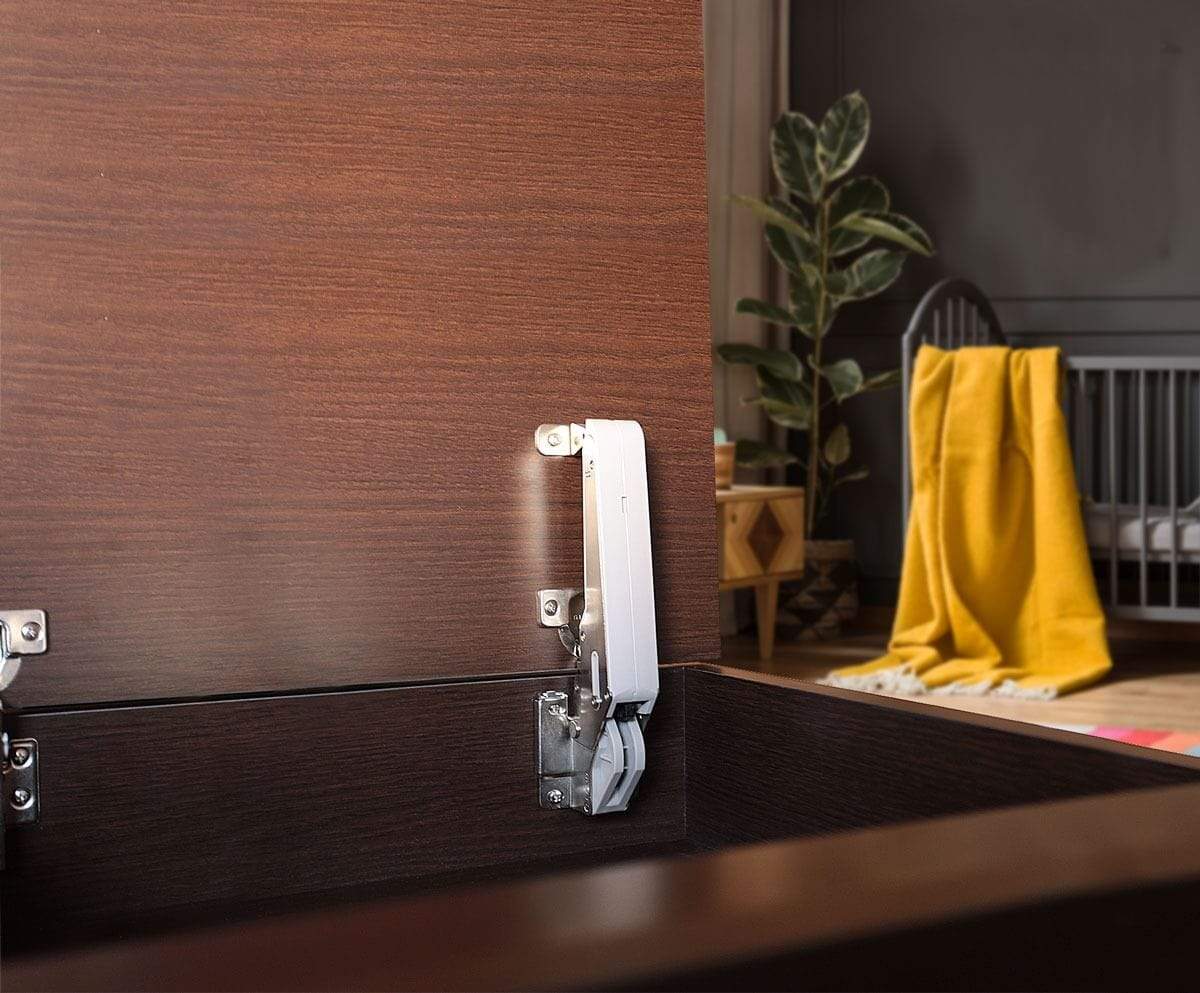

These Soft Close Lid Stays with Lift Assist feature are top opening and have an integrated design which combines a concealed hinge and lid stay. The lift assist and soft close features are independently adjustable, and the stay is available in two torque ranges.
Product Specifications:
- Soft Close Lid Stay
- Lift Assist
- Top Opening
- Torques Available:
- 35.4 – 53.1 lbs•in
- 53.1 – 70.8 lbs•in
- Board Thickness: 9/16″ – 7/8″
- Materials: Steel, Zinc Allow – Nickel Finish; Plastic – Gray Finish
- Smooth door movement
- Specially designed for use with the Olympia concealed hinge – integrated design creates lift assist, free-stop, and soft closing functions
- Lift-assist function allows for light opening of doors
- Free-stop function enables doors to hold in position (30°-Max.)
- The soft-close function makes doors close gently (0°-30°)
- Integrated design combines a concealed hinge and lid stay
- Lift assist and soft-close independently adjustable
- Requires minimal 3″ x 7″ space for installation
- Installation Guide
- Sold as set
