Description

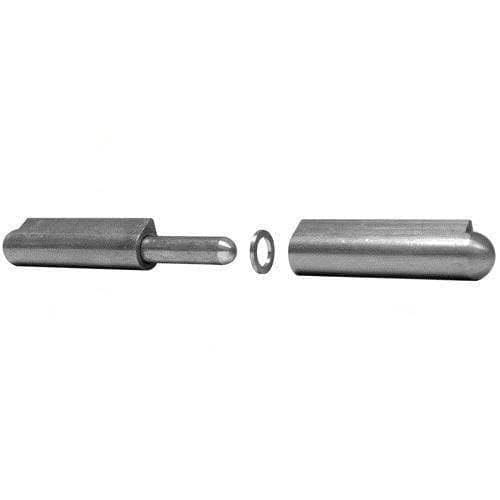

These Solid Steel Weld On Hinges come with a Steel Pin, Brass Grease Fittings and Brass Ring. They are available in the following sizes. Click here to learn more about the benefits of Bullet Hinges. Sold Individually.
| Length | Pin | Barrel | Weight | Weight Capacity | |
| 3-3/16″ | 5/16″ | 5/8″ | .36 lbs | 240 lbs | |
| 4″ | 25/64″ | 5/8″ | .076 lbs | 450 lbs | |
| 5 1/4″ | 15/32″ | 3/4″ | 1.24 lbs | 750 lbs | |
| 7″ | 1/2″ | 13/16″ | 2.1 lbs | 820 lbs | |
| 7-3/4″ | 5/8″ | 29/32″ | 2.99 lbs | 1000 lbs | |
| 10-1/4″ | 3/4″ | 1-3/32″ | 6 lbs | 1250 lbs |
