Description
Our HVLP fogless coolant sprayer that delivers a precisely targeted spray to the cutter and work piece without finely atomizing toxic coolants – substantially reducing coolant waste, lubrication over-spray, and hazardous fog
Specifications:
– Extra high resolution knob provides fine control over coolant-to-air mixture ratio and is compatible with most coolant types and oils
– Extremely tight coolant spread, forming a 3” diameter over 12” of distance, injects Coolant Deep Into Pockets and Holes, while also Clears Chips from Cutter and Workpiece – resulting in Higher Cutting Speeds, Increased Tool Life, and improved cut quality
– Magnetic On/Off Base attaches onto metal surfaces at the flip of a switch, while the articulating arm and multi-position mounting points allow you to secure the LUBECUBE at the exact position and angle required for optimal processing.
– Fully Pressurized System Delivers a reliable, uninterrupted continuous flow of coolant to the work piece. It’s instant on and off response with pressurization, and ease of adjustment, make it a real time saver
– Masterfully CNC Machined all Metal Construction and Backed by 5 Year SST Warranty
Kit Includes:

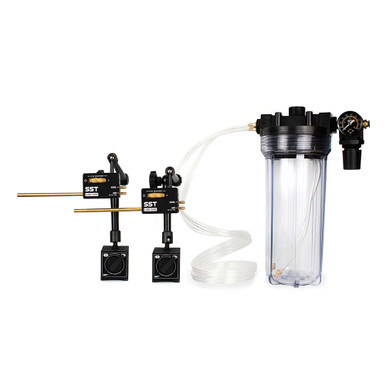

– LUBECUBE Coolant Sprayer Block
– Magnetic Base with Articulating Arm
– 2 Liter Coolant Cannister with Mounting Bracket
– Brass Check Valve
– Locking Air Regulator (1/4” NPT Inlet)
– 5ft of Twin-Line Chemical & Abrasion Resistant Tubing
– Coolant Pickup Filter
– 6mm Push Fit Connector (for air inlet)
Choosing a Canister Material:
We’ve tested dozens of coolant types, and have found that our Polycarbonate canister is NOT compatible with:
– Isopropyl Alcohol
– Kool Mist 77 / 78
Please choose the polypropylene canister material (or order an additional canister bottom from our Parts page) if you anticipate using these coolants
