Description

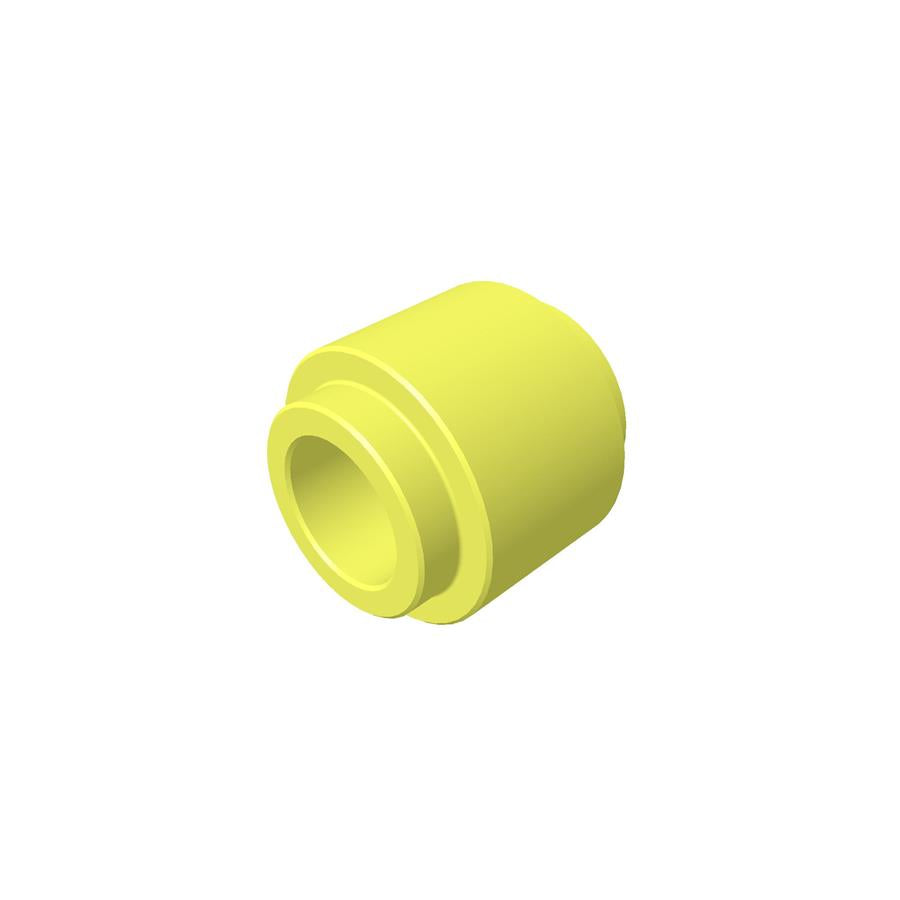

- TYPE: TORO OEM Step Spacer
- SIZE: NA
- APPLICATIONS: (Spacers are stepped to Fit into the Lift Plate or (HOC) Selection Plate at the same time Allowing Correct spacing for (HOC) Link – One of the Spacers is Required to Insert Through and Retain the Transport Latch Handle).
- COMMON SERIES APPLICATIONS: Toro Select Late Timecutter HD Models – Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (With Tube Style Framing).
*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
Specification
|
Product Number: |
1164313, 116 4313 |
|
Brand: |
Toro |
|
Length: |
0.750 IN (1.905 CM) |
|
Width: |
0.750 IN (1.905 CM) |
|
Height: |
0.750 IN (1.905 CM) |
|
Weight: |
0.055 LB (0.025 KG) |
Model Fit:
TIMECUTTER
48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 75201, 75210, 75211)
54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 75202, 75212)
60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)
TITAN
48” Titan MX & ZX Series (PRE – Current IBEAM – Framing – Tube Framing Models Only)– 48” Early Models – (* Model Numbers 74851, 74855, 74846, 74891, 74861)
54” TITAN ZX and MX Series(PRE – Current IBEAM – Framing – Tube Framing Models Only)– 54” Early Models Only – (* Model Numbers 74852, 74882, 74848, 74892, 74862)
60” TITAN MX6000 & ZX6000 (PRE – Current IBEAM – Framing – Tube Framing Models Only)– 60” Early Models/Tube Framing –(* Model Numbers 74853, 74863, 74883, 74893)
