Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

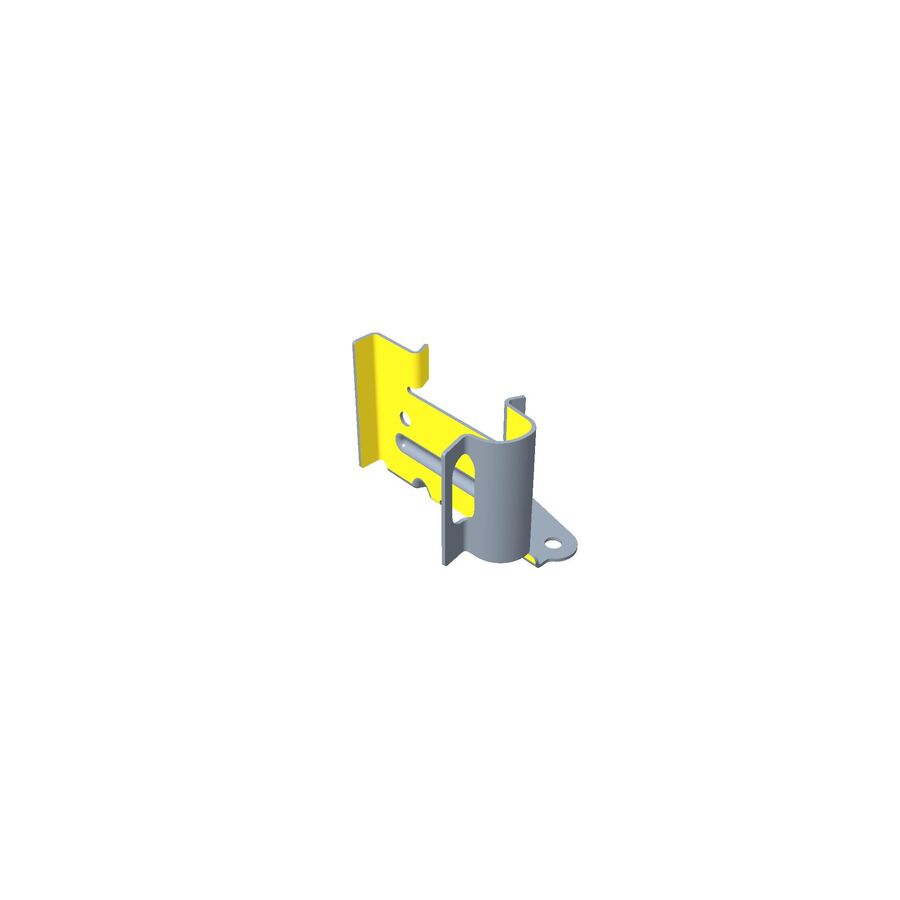

Part Number 117-7710 Supersedes to Part Number 119-2907
- PRODUCT NUMBER AND VARIATIONS: 119-2907, 119 2907, 1192907, 117-7710, 117 7710, 1177710
- PRODUCT TYPE: BELT GUIDE/CABLE GUIDE
- SIZE: Length 4.250 in. – Width 3.250 in. – Height 3.000 in. – Weight 0.430 lbs.
- NOTES & DETAILS: Toro OEM 119-2907 IS COMMINLY USED – 119-2907 Fastens to the Frame of the Snowblower and acts in Redirecting the Tension Cable into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable – Cable Is Routed under the Bottom Side across the Curved/Shoe Style Surface and through the Opening on the bottom side – 119-2907 Also acts as a belt Guide Reducing the chances of the Rotor/Auger Belt from Coming off.
- COMMON SERIES APPLICATIONS: Toro Select 18″ Power Clear & Powerlite Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38283)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472 Serial Number 402081999 and Lower, 38473 Serial Number 402081999 and Lower)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-2907 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 33114-016 – HEX HEAD BOLT (Screws Through the Main Frame and Into the Engine Crankcase, Retaining the Belt Guide/Cable Guide and Engine to the Main Snowblower Frame Using the Threaded Engine Crankcase Wholes) x2 Per Belt Guide/Cable Guide
- 3290-456 – FLAT SPACER WASHER (Installed Between the Bolt Hex Head and the Belt Guide/Cable Guide, Used to Support the Hex Head Bolt Head Against the Belt Guide Cable Guide Bracket whole as well as Retaining Tension Under Tightening Pressure) x2 Per Belt Guide/Cable Guide
