Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 119-1953 Supersedes to Part Number 120-4402
- PRODUCT NUMBER AND VARIATIONS: 120-4402, 120 4402, 1204402, 119-1953, 119 1953, 1191953
- PRODUCT TYPE: Fuel Line Kit
- SIZE: Length 5.100 in. – Width N/A in. – Height N/A in. – Weight 0.0196 lbs.

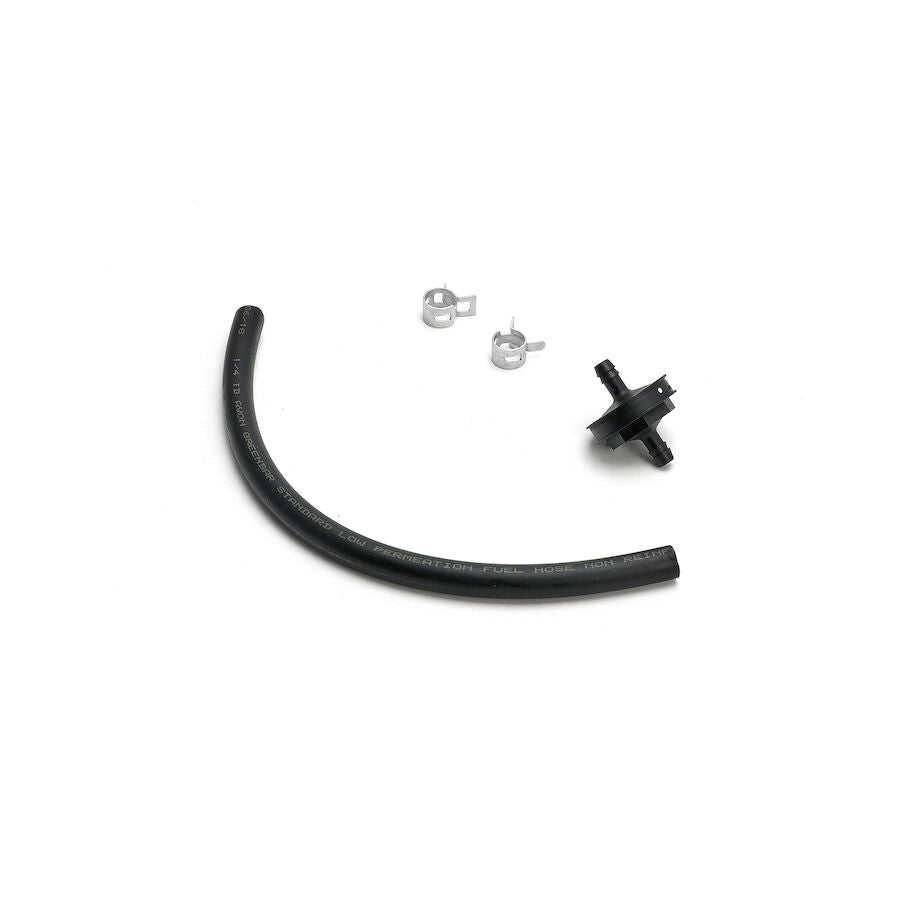

- NOTES & DETAILS: Toro OEM 120-4402 IS COMMINLY USED – 120-4402 Fuel Line Kit Fuel Line Contains a thicker Fuel Line that is a more abrasive resistant and helps enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl – 120-4402 Fuel Line Kit Fuel Line Only Comes as a one piece and will Only Connect the Inline Fuel Filter to the Carburetor – For the Fuel Line Inline Fuel Filter Section to the Fuel Tank Refer to Part Number 114-3765. * Fuel Line Kit Contains Fuel Line Hose (Only Carb. to Fuel Filter End), Fuel Line Abrasive Sleeves, Inline Fuel Filter and Hose Clamps.
- COMMON SERIES APPLICATIONS: Toro Select 21″ 400 & 600 Series Quick Clear and Power Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564, 38567, 38569)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38588, 38589)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 120-4402 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
COMPLETE CARBURETOR ASSEMBLY
- 120-4418 – Power Clear, Quick Clear 400 & 600 Series (Only Select Models – Review Models Fit Chart Associated to Each Part Numbers)
ASSOCIATED COMPLETE PRIMER BULB KIT
- 127-9376 – Power Clear, Quick Clear 400 & 600 Series(* Select Models and Serial Numbers Only – Review Part Number’s Model Fit Chart to Ensure Correct Fit)
COMMON FUEL LINE KIT INDIVIDUAL PARTS ONLY
- 114-3765 – FUEL LINE HOSE – INLINE FUEL FILTER to FUEL TANK (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl – Fuel Line Only Connects to the Inline Fuel Filter and from there Connects to the Fuel Tank) x1 Per Carburetor (* Select Models and Serial Numbers Only – Review Part Number’s Model Fit Chart to Ensure Correct Fit)
- ONLY AVAILABLE IN FUEL LINE KIT 120-4402 – FUEL LINE HOSE – CARB. to INLINE FUEL FILTER (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl – Fuel Line Only Connects to the Inline Fuel Filter and from there Connect to the Carburetor) x1 Per Carburetor (* Select Models and Serial Numbers Only – Review Part Number’s Model Fit Chart to Ensure Correct Fit)
- ONLY AVAILABLE IN FUEL LINE KIT 120-4402 – FUEL LINE CLAMP – CARB. to INLINE FUEL FILTER (Retains the Thicker more Abrasive Carburetor Side Fuel Line to the Bottom of the Carburetor, Fuel Filter)
- 2412-98 – FUEL LINE CLAMP – FUEL TANK to INLINE FUEL FILTER (Retains the Thinner Tank Side Fuel Line to the Bottom of the Fuel tank, Fuel Filter) x1 Per Fuel Line
