Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

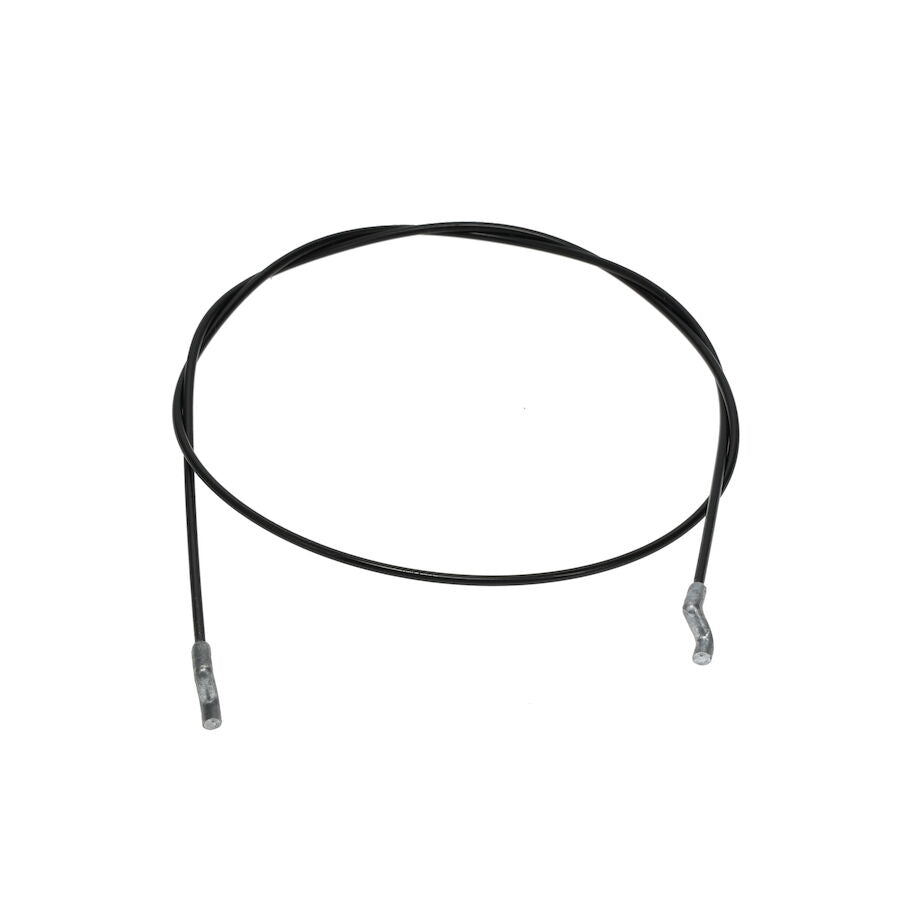

- PRODUCT NUMBER AND VARIATIONS: 140-1000, 140 1000, 1401000
- PRODUCT TYPE: Auger/Rotor Clutch Cable
- SIZE: Length 4.100 in. – Width 4.100 in. – Height 0.200 in. – Weight 0.092 lbs.
- NOTES & DETAILS: Toro OEM 140-1000 IS COMMINLY USED – Inserts into the Idler Pulley Tensioner Arm as well as the Clutch Spring/Cable Adjuster Plate and Tightens the Belt when the Operator Engages the Auger/Rotor Bail Handle or Upper Handle Clutch Bail – The Tightening Action of the Cable and Belt Engages the Auger/Rotors.
- COMMON SERIES APPLICATIONS: Toro Select 21″ Power Clear & Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563 Serial Number 405012000 and above, 38568 Serial Number 405012000 and above)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38752, 38753, 38754, 38755, 38756, 38757)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 140-1000 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 136-7138 – AUGER/ROTOR TENSIONER IDLER ARM (Connects to the Auger/Rotor Clutch Cable and Contain an Idlers Pulley That Rest Against the Auger Belt when tightened – 136-7138 Pivots when pulled by the cable as the Operator Engages the Auger/Rotor Clutch Handle) x1 Per Auger/Rotor Clutch Cable
- 136-7126 – CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into – 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
- 139-3565 – CABLE GUIDE (Installed on the Frame of the Snow Blower – Aguer/Rotor Clutch Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable – Cable Guides are Made of a Softer Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges – Important to Check the Cable Guide when Replacing the Auger Clutch Cable) x1 Per Auger/Rotor Clutch Cable
- 139-3564 – CABLE GUIDE CAP (Removeable Cap that Enable the Auger/Rotor Clutch Cable to be Inserted into the Cable Guide and Retains the Cable When Reinstalled) x1 Cable Guide
- 140-3660 – COMPLETE CABLE GUIDE KIT (* Contains Screw, Nylon Lock Nut, Cable Guide, Cable Guide Cap – Installed on the Frame of the Snow Blower – Aguer/Rotor Clutch Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable – Cable Guides are Made of a Softer Plastic or Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges – Important to Check the Cable Guide when Replacing the Auger Clutch Cable) x1 Per Auger/Rotor Clutch Cable
