Description

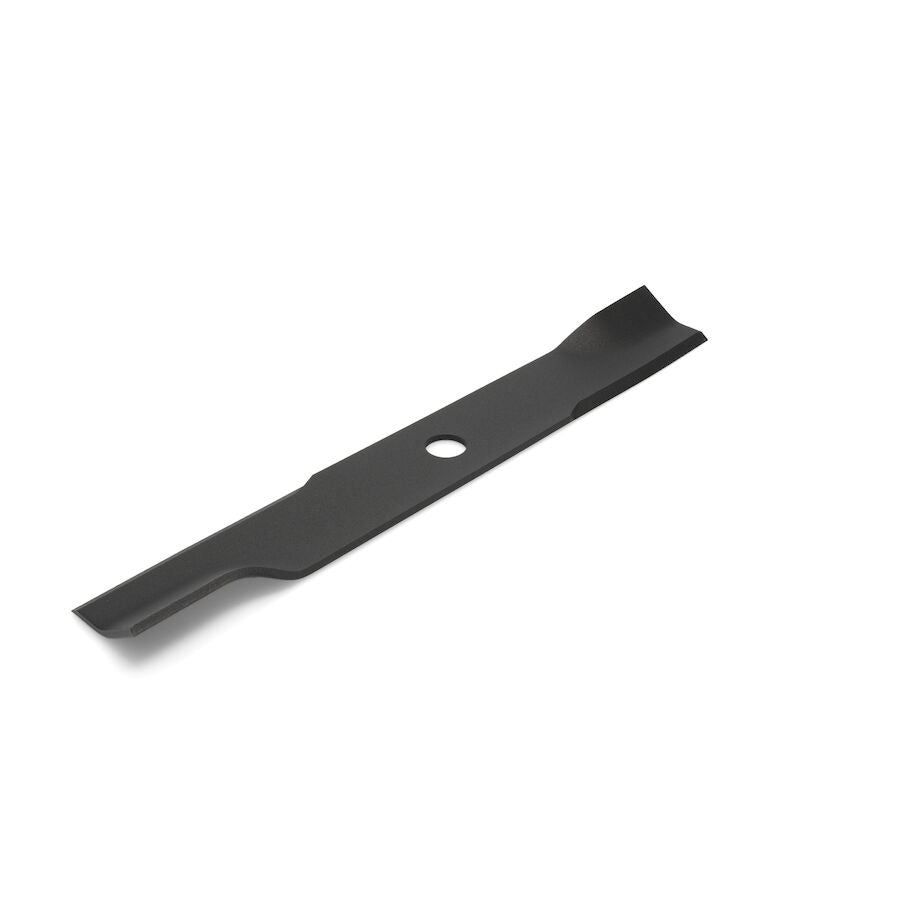

Toro OEM 140 4856 MEDIUM-FLOW Mower Deck Blade was created as an all-purpose Mower Deck Blade, Giving you the option of mowing various types of grass with a similar result. The OEM 140 4856 MID-FLO Mower Blade features a medium lip designed to prevent light, damp grass from sticking to the deck. This helps reduce build-up of grass clumps and allows heavier, damp grass to easily pass through the discharge chute, resulting in a more evenly distributed discharge of grass clippings. This Mower Deck Blade was made to OEM Specifications to fit Toro Grandstand and ZMaster 3000, 4000, 5000 and 7000 series with a 52 in. Deck. Please Refer to the Special Notes, References and The Model Fit Chart below to ensure a proper fit. Click on the Part Numbers to be redirected.
NOTE: Due to a Serial Number brake that could overlap Models, The Toro 140-4856 does require the Shaft/Blade Arbor Assembly to have a Hex Insert. Refer to the image above for an accurate Comparision. If you have an External Octogen or Round Flat shaft refer to part number 105-7794-03. Some Grandstand Model with the 36″ Mower Decks will use the same Blade as the 52″ Mower Decks, However Models containing the newer Hex Insert Shaft/Blade Arbor will not use the same blades between the 36″ and 52″ Mower Decks.
- COMPATIBLE BLADE REFERENCES
- 140-4857 – Low Lift Blade
- 140-1242 – Hi Flo Blade
- 140-4858 – Atomic Blade
- 140-4859 – Mulching/Recycler Blade
- COMPATIBLE PART REFERENCES
- 137-9780 – Spindle Assembly (Click on part number to view associated parts)
- 109-9220 – Blade Bolt
Specification
|
Product Number: |
1404856 |
|
Brand: |
Toro |
|
Length: |
17.750 IN (45.085 CM) |
|
Width: |
2.500 IN (6.350 CM) |
|
Height: |
1.000 IN (2.540 CM) |
|
Weight: |
2.377 LB (1.078 KG) |
Model Fit:
72949, 72932, 72906, 72955, 72266, 72505, 71505, 72519, 72529, 74002, 74050, 74052, 74010, 72530, 72506, 72507, 72907, 72956, 72908
