Description

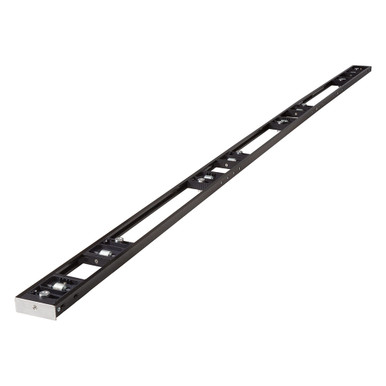

Introducing the Fully-Adjustable Router Jig, a versatile tool designed to accommodate all hinge sizes, positions, and door heights, making it ideal for both new and replacement installations. With its modular rail construction, this jig can be adjusted from 2’6″ to 9′, covering all standard door sizes, including 6’6”, 6’8”, 7’0”, 8’0”, and 9’0”. The innovative twin-rail system offers unlimited hinge positions, allowing for quick and precise recessing of square and radius (⅝” & ¼”) hinges in timber doors and frames. Its radius hinge compatibility ensures fast and accurate installation of square, ¼” radius, or ⅝” radius hinge profiles. The jig features a ⅛” (3.0mm) steel end plate for minimal adjustment and a 1” (25mm) rail depth for use against fixed door stops. Secure the jig with included bradawls for speed or no.6 woodscrews for maximum stability. The tough carry bag stores pre-built jig sections, reducing assembly time. Adjustable edge guides accommodate 1″ to 2½” hinges with preset positions or custom widths for non-standard hinges. The adjustable quick-release aperture blocks feature Trend’s tool-free, patented thumb-turn locking mechanism for fast, accurate hinge positioning, making this jig an essential tool for any professional or DIY enthusiast.
- Modular Rail Construction* allows the jig to be adjusted from 2’6” to 9’ out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”).
- Twin-Rail System* provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.
- Radius Hinge Compatibility allows fast and accurate installation of square, ¼” radius or ⅝” radius hinge profiles.
- Attachment Options allow the jig to be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability.
- Tough Carry Bag stores pre-built jig sections to minimize assembly time.
- Lightweight Anodized Aluminum Rails for optimum strength, durability, accuracy and a smooth router running surface.
- Adjustable Edge Guides accommodate 1” to 2½” hinges with either four present positions or custom widths (for non-standard hinges).
- Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
- 1/8” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment.
- 1” (25mm) Rail Depth allows jig to be used against fixed door stops.
- Includes: ½” (12.7mm) Router Bit, 16.7mm Template Guide, 90° Corner Chisel, and x8 Bradawls.
Uses:
- Template kit for routing butt hinge recesses in doors and frames
- Adjusts to various hinge sizes and positions quickly
- Ensures accurate and clean hinge cut-outs with a router
- Supports door hanging and fitting in joinery projects
- Useful for both domestic and commercial door installation
- Works with standard plunge routers for professional results
