Description
Experience effortless installation with the Trend Concealed Cabinet Hinge Jig, designed to simplify the process of fitting concealed cabinet hinges. This precision drilling jig allows for quick and accurate installation of Euro-style hinges, making your cabinet assembly a breeze. With its user-friendly design, you can achieve professional results in no time, ensuring your projects are completed efficiently and to a high standard. Say goodbye to complicated setups and hello to streamlined assembly with this essential tool for any woodworking enthusiast.

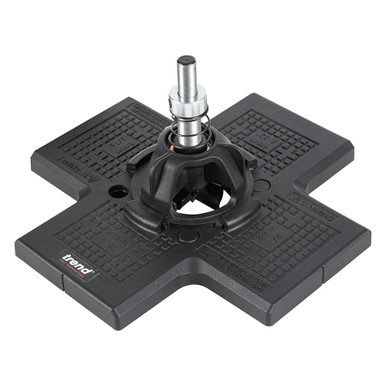

A precision drilling jig for installing concealed cabinet (‘euro-style’) hinges accurately and quickly. Features tool-free inset positioning for rapid setup and pilot hole guides to ensure perfect hinge alignment. For use with a standard Combi Drill. Includes 35mm TCT machine bit.
- 3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door.
- In-built Depth Stop to prevent over-drilling.
- Pilot Hole Plate ensures hinges are mounted perfectly square.
- Pin Guide System minimises setup time & guarantees positional accuracy.
- Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.
- Spring-Loaded Drill Guide prevents machine bit from damaging door surfaces.
- Large Clamping Area to secure the jig during use.
- Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF.
Specifications
- Insets: 3, 4, 5, 6 mm
- Bit Diameter: 35 mm
- Bit Shank Diameter: 9.5 mm
Uses
- Replacement for concealed cabinet hinges
- cabinet assembly
- woodworking
- furniture making
- home improvement
