Description

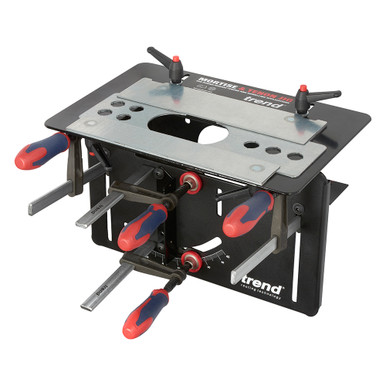

Achieve perfect-fitting joints with the Trend Mortise and Tenon Jig, designed for versatile joint cutting in furniture construction. This jig allows you to cut precise mortise and tenon joints for cabinets, chairs, and tables using a plunge router, all with a single setup for both pieces. It features a fully adjustable design for compound angle joints, with a reversible template that produces both round and square end tenons, and an angle bar that rotates from -10° to 45° for flexible joint configurations. Capable of cutting materials from 1/2 inch to 1 7/8 inches thick and up to 3 1/2 inches wide, it’s perfect for both large furniture projects and smaller crafts. The jig includes a US-style screw-on guide bush, specifically designed for US routers (router not included), ensuring accurate doweling applications with an adjustable base for angled joints. Elevate your woodworking projects with this essential tool for precision and ease.
Enables mortise & tenons and dowel joints to be cut with a plunge router.
- Ideal for cabinet, chair and table construction.One set-up for both mortise and tenon giving perfectly fitting joints.
- Cuts mortise & tenon sizes of 1/4 to 5/8.Fully adjustable for compound anglejoints up to 45 degrees.
- Reversible templates to produce round and square end tenons.
- Templates can be used for accurate dowelling applications.
- Includes screw-on style guide bushes.
- Router not included.
Specifications
- Material thickness min: 1/2″
- Material thickness max: 1 7/8″
- Tenon thickness min: 3/16″
- Tenon thickness max: 5/8″
- Tenon width max. using vertical guide+: 3 1/2″
- Tenon length max.++: Approx. 1″
- Mortise length max. using vertical guide+++: 3 1/2
- Angle tilt compound: -10 degree to 45 degree
Uses
- Replacement for traditional joinery methods
- furniture construction
- cabinet making
- chair and table assembly
- precise mortise and tenon joints
- compound angle joints
- woodworking projects
- accurate doweling applications
- versatile joint cutting
- suitable for thick materials
- adjustable for various joint designs
