Description

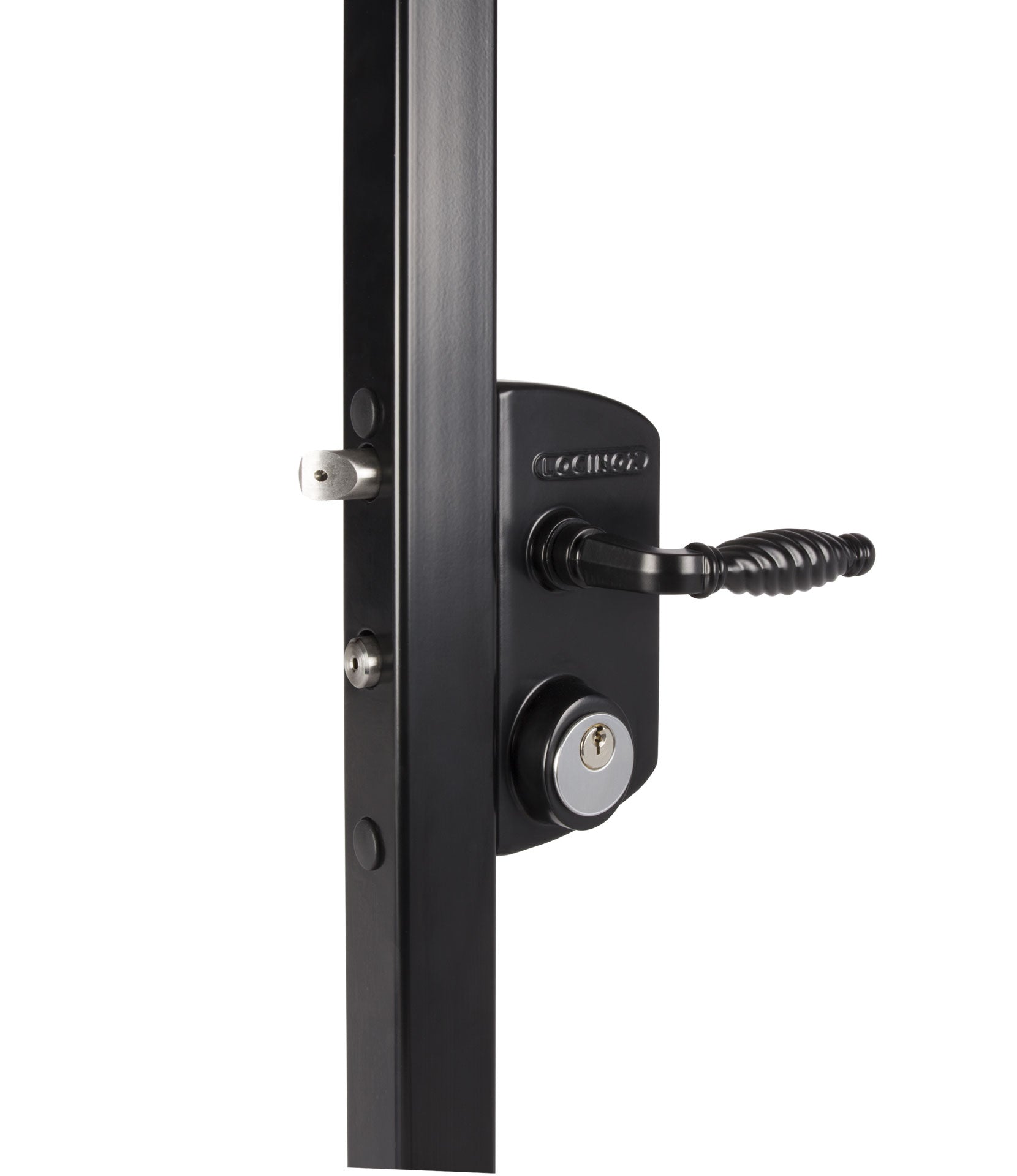

This US Mortise Cylinder Gate Lock is used for square profiles. It is an excellent gate lock with aluminum housing and stainless steel mechanism. Specially developed to use with a standard 1-1/8″ Mortise cylinder. Comes standard with 5-pin keyed alike or keyed different (drilled 6-pin). The latch and dead bolt have 3/8″ continuous adjustment to allow perfect alignment of the locking mechanism. A stainless steel throw of 7/8″ guarantees secure locking. Black lock standard provided with 3006B handle (black anodized aluminum).
Product Specifications:
- US Mortise Cylinder Gate Lock
- Profile Shape: Square, Flat
- Finish: Black
- Profile Sizes:
- 3/8″ to 7/8″
- 7/8″ to 1-1/4″
- 1-1/4″ Inch to 1-1/2″ Inch
- 1-1/2″ Inch to 2″ Inch
- 2″ Inch to 2-3/8″ Inch
- 2-1/2″ Inch to 2-3/4″ Inch
- Cylinders Available:
- GMA, ZCZ, VMZ
- ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
- Gate Lock with double cylinder dead bolt. Designed for 1-1/8″ Mortise profile cylinder
- Fixing cylinder inch thread 8/32′
- Easy left or right changing of the self-latching daybolt
- Throw of the dead bolt, 7/8″ in 1 turn of the key
- Key-operated self-latching bolt, allows Free Exit application
- Adjustment of the bolts up to 3/8″ continuous without removing the lock
- 4-hole mounting with two hex head socket screws
- Interchangeable with all Locinox locks
- The lock box requires a 3-3/8″ spacing to the first picket, fitting nicely into most gates
- Sold individually
